| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10109540 | Trim, Side (black (right)) |  |
|||
| W10109570 | Trim, Side (white (right)) | |
||||
| W10109550 | Trim, Side (biscuit (right)) | |
||||
| W10140548 | Trim, Side (stainless (right)) | |
||||
| WPW10109490 | Trim, Side (black (left)) | |
||||
| W10109520 | Trim, Side (white (left)) | |
||||
| W10109500 | Trim, Side (biscuit (left)) | |
||||
| WPW10140547 | Trim, Side (stainless (left)) | |
||||
| 2 | 8053971 | Brace, Main Back | |
|||
| 3 | WP4455605 | Receiver, Hinge (left) | |
|||
| WP4455606 | Receiver, Hinge (right) | |
||||
| 4 | W10105790 | Bumper & Screw | |
|||
| 5 | WP4448444 | Grommet, Mounting Rail | |
|||
| 6 | WP3400832 | Screw | |
|||
| 7 | 8303099 | Chassis, Top | |
|||
| 8 | 9759722 | Insulation, Body Side Trim | |
|||
| 9 | 9761666 | Tube, Vent | |
|||
| 10 | W10067870 | Lens, Light | |
|||
| 11 | WPW10734065 | Assembly, Light (Replaces:W10009930) | |
|||
| 12 | WP4173175 | Bulb, Light (Replaces:4452166) | |
|||
| 13 | 9757732 | Shield, Heat | |
|||
| 14 | WPW10115831 | Frame, Front (Replaces:W10130368) | |
|||
| 15 | W11675844 | Gasket, Door (Replaces:W10074200) | |
|||
| 16 | W10153487 | Trim, Bottom Vent (biscuit) (Replaces:W10104900) | |
|||
| WPW10153488 | Trim, Bottom Vent (white) (Replaces:W10104910) | |
||||
| W10153486 | Trim, Bottom Vent (black) (Replaces:W10104890) | |
||||
| WPW10154789 | Trim, Bottom Vent (stainless) (Replaces:W10104870) | |
||||
| 17 | 4452152 | Bracket, Bottom Vent | |
|||
| 18 | WP9757685 | Guide, Side Panel | |
|||
| 19 | 9757461 | Bracket,side Panel | |
|||
| 20 | 8186387 | Oven, Side Panel (black) (Replaces:9760723PB) | |
|||
| 8186386 | Oven, Side Panel (white) (Replaces:9760723PW) | |
||||
| 8186388 | Oven, Side Panel (biscuit) (Replaces:9760723PC) | |
||||
| 21 | 9757811 | Brace, Side Panel | |
|||
| 22 | WP9760889 | Latch, Motorized (Replaces:9760888) | |
|||
| 23 | WP9757807 | Thermostat Spst | |
|||
| 24 | 9759890 | Clip, Side Panel | |
|||
| 25 | W10782197 | Side, Panel (Replaces:4455641) | |
|||
| 26 | 9759762 | Back, Chassis | |
|||
| 27 | N/P | Liner, Oven (not Serviceable) | |
|||
| 28 | 9759945 | Standoff, Rear | |
|||
| 29 | WPW10131825 | Sensor | |
|||
| 30 | 9756454 | Bracket, Appliance Manager | |
|||
| 31 | 9760223 | Slide, Dsi Module | |
|||
| 32 | W10083460 | Slide, Global Oven Control | |
|||
| 33 | WP9762774 | Manager, Appliance | |
|||
| 34 | WP3196557 | Screw (Replaces:3196537) | |
|||
| 35 | 9760481 | Washer | |
|||
| 36 | WPW10116897 | Vent, Bottom Upper (white) (Replaces:9756481WH) | |
|||
| 9756481BT | Vent, Bottom Upper (biscuit) | |
||||
| WPW10160347 | Vent, Bottom Upper (stainless) (Replaces:9756481SS) | |
||||
| W10116899 | Vent, Bottom Upper (black) (Replaces:9756481BL) | |
||||
| 37 | WP9759242 | Thermostat, Thermal Overload | |
|||
| 38 | WP4449809 | Screw | |
|||
| 39 | N/P | Cover, Back | |
|||
| 40 | WP4448933 | Gasket, Retainer | |
|||
| 41 | WP4449743 | Screw | |
|||
| 42 | W10110534 | Base, Chassis | |
|||
| NI | 9756470 | Insulation, Back | |
|||
| 9756817 | Insulation, Wrap | |
||||
| N/P | Following Parts Not .illustrated | |

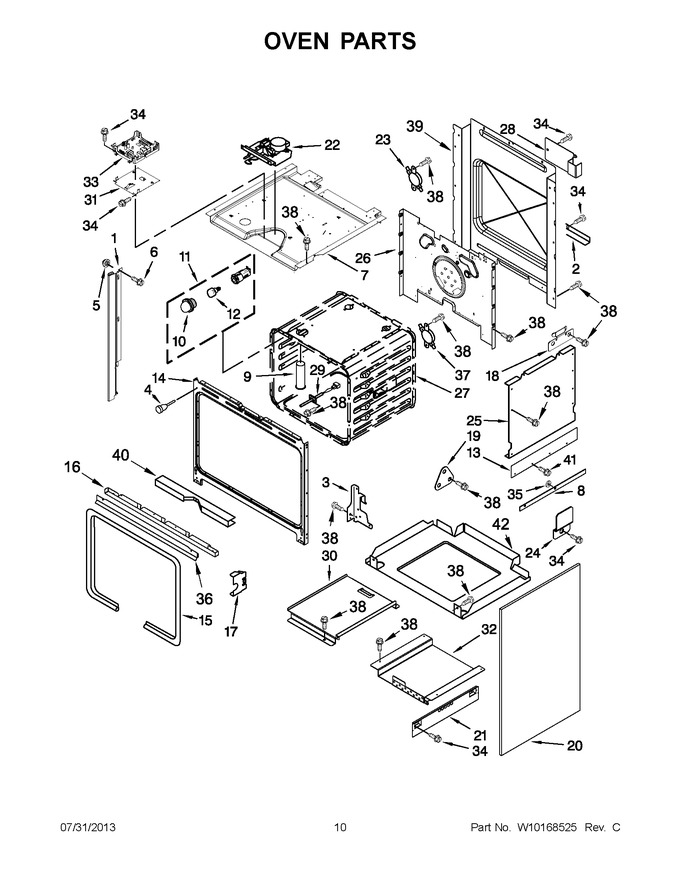

View Diagram in Separate Window
