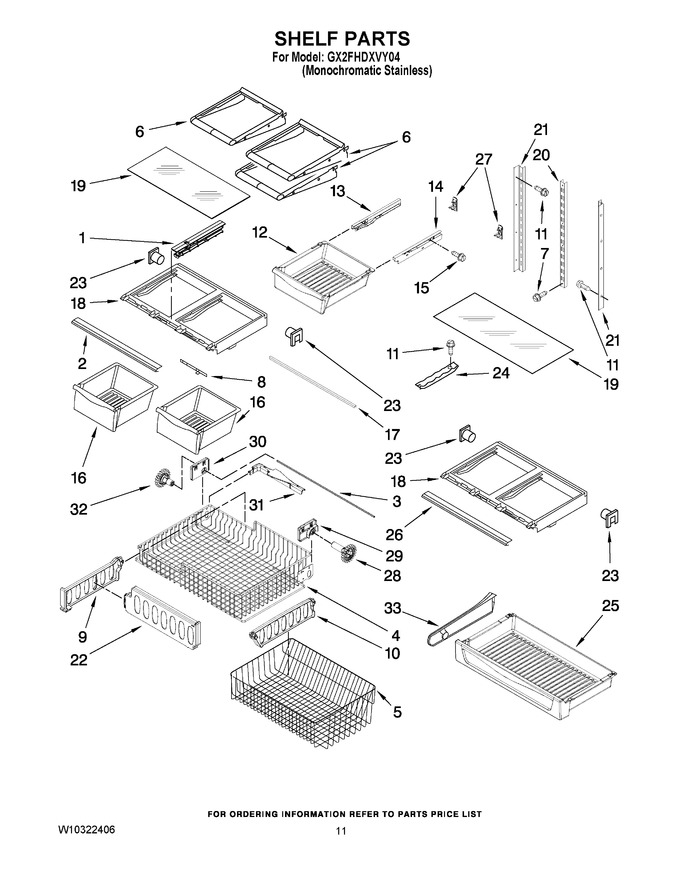

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces:12530701) |  |
|||
| 2 | WPW10231482 | Trim, Crisper | |
|||
| 3 | W10802339 | Shaft (Replaces:12812905WD) | |
|||
| 4 | WPW10348238 | Basket, Freezer (upper) (Replaces:W10169950) | |
|||
| 5 | WPW10503183 | Basket, Freezer (lower) (Replaces:W10150038) | |
|||
| 6 | W11402523 | Shelf (3) (Replaces:12463509) | |
|||
| 7 | W10215666 | Screw | |
|||
| 8 | WP67005864 | Slide, Humidity Control (2) (Replaces:12530805SP) | |
|||
| 9 | W10241046 | Divider, Basket (upper) | |
|||
| 10 | W10205416 | Divider, Basket (lower) | |
|||
| 11 | 67006425 | Screw (Replaces:12990513) | |
|||
| 12 | WP67001314 | Pan-deli (Replaces:12656404SP) | |
|||
| 13 | WP67001054 | Glide -left (Replaces:12656601SP) | |
|||
| 14 | WP67001053 | Glide-right (Replaces:12656602SP) | |
|||
| 15 | W11233072 | Screw (Replaces:12990302SP) | |
|||
| 16 | WP67002633 | Pan, Crisper (2) (Replaces:12530505) | |
|||
| 17 | WP12227303WD | Brace, Crisper (2) | |
|||
| 18 | WPW10568041 | Frame, Crisper (2) (Replaces:12530401SP) | |
|||
| 19 | WP67006878 | Glass, Crisper Cover (Replaces:12204822) | |
|||
| 20 | W10273463 | Ladder, Center | |
|||
| 21 | W10251969 | Ladder, Side | |
|||
| 22 | W10311695 | Divider, Upper Frz | |
|||
| 23 | WP67001721 | Support, Crisper Frame (left) (Replaces:12531001) | |
|||
| WP67001722 | Support, Crisper Frame (right) (Replaces:12531002) | |
||||
| 24 | WP67001719 | Track, Pantry (Replaces:12531901) | |
|||
| 25 | WPW10328326 | Drawer, Pantry (Replaces:12645027) | |
|||
| 26 | W10231334 | Trim, Pantry | |
|||
| 27 | WP67001716 | Ladder-hook (2) (Replaces:12531802) | |
|||
| 28 | WPW10474715 | Gear (Replaces:W10146446) | |
|||
| 29 | W10348260 | Mount, Rh Gear (Replaces:W10233899) | |
|||
| 30 | W10348259 | Mount, Lh Gear (Replaces:W10233898) | |
|||
| 31 | W10149389 | Lift-bail Arm (Replaces:W10149389N) | |
|||
| 32 | WPW10474716 | Gear (Replaces:W10158749) | |
|||
| 33 | WP67001923 | Divider-pantry (Replaces:12707601) | |
