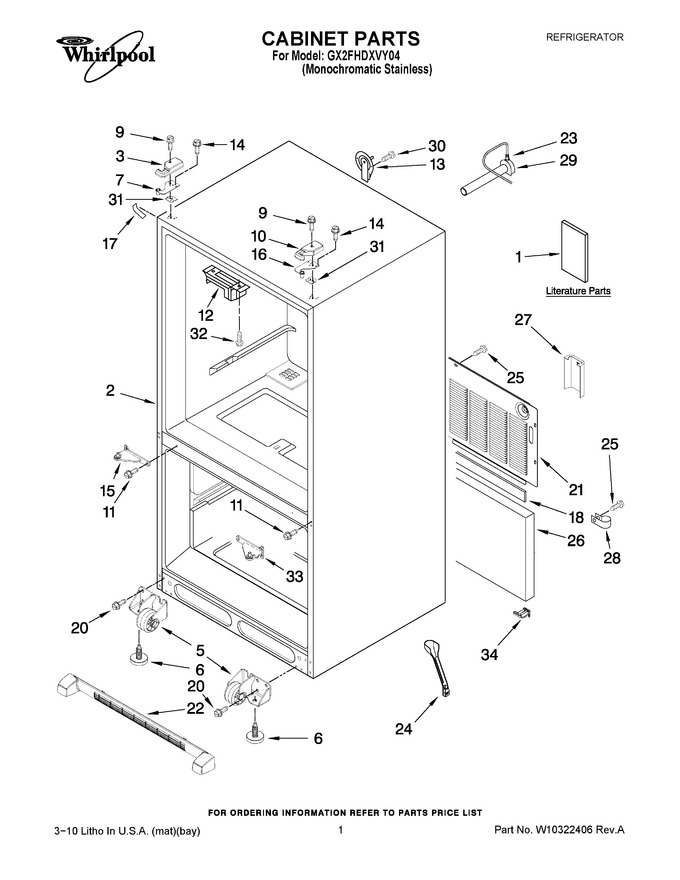

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10208431 | Use & Care Guide |  |
|||
| W10308622 | Tech Sheet | |
||||
| W10260546 | Energy Guide | |
||||
| 2 | N/P | Cabinet (not A Servicable Part) | |
|||
| 3 | WPW10337648 | Cover, Left Hinge (apollo Grey) (Replaces:W10217488) | |
|||
| 5 | WPW10515762 | Roller Assy. (2) (right Side) (Replaces:W10275849) | |
|||
| WPW10515763 | Roller Assy. (2) (left Side) (Replaces:W10275850) | |
||||
| 6 | WPW10141622 | Foot Brake | |
|||
| 7 | W11592375 | Hinge, Left Top (Replaces:12963204ED) | |
|||
| 9 | WP8281196 | Screw (Replaces:12992602) | |
|||
| 10 | WPW10191117 | Cover, Right Hinge (apollo Grey) (Replaces:12962302AP) | |
|||
| 11 | WP489349 | Screw (Replaces:12990101) | |
|||
| 12 | WP67003405 | Block, Pivot (Replaces:12698403) | |
|||
| 13 | 12726003 | Cover, Water Line | |
|||
| 14 | WP489349 | Screw (3) (Replaces:12992403) | |
|||
| 15 | W10917988 | Hinge, Center (lt) (apollo Grey) (Replaces:13000001AP) | |
|||
| 16 | W11592374 | Hinge, Right Top (Replaces:12963205ED) | |
|||
| 17 | WP12587703AP | Cover, Corner (apollo Grey) | |
|||
| 18 | B5759655 | Gasket-mc Back | |
|||
| 20 | 67006564 | Screw (4) (Replaces:12991302) | |
|||
| 21 | WPW10210979 | Cover, Unit | |
|||
| 22 | WPW10534160 | Grille, Toe (apollo Grey) (Replaces:W10236194) | |
|||
| 23 | WPM0114003 | Clip, Speed (Replaces:M0114003SP) | |
|||
| 24 | W10619951 | Tube, Drain (Replaces:W10210988) | |
|||
| 25 | 67006425 | Screw (Replaces:12990511) | |
|||
| 26 | 12820505 | Fiber, Acoustic | |
|||
| 27 | W10208592 | Guard, Water Valve (single) | |
|||
| 28 | W10833902 | Clamp, Tube (Replaces:M0108105) | |
|||
| 29 | W11176463 | Elbow, Fill Tube (Replaces:10463203SP) | |
|||
| 30 | WP98165 | Screw (Replaces:12990504) | |
|||
| 31 | 12999501 | Shim, Top Hinge (left) | |
|||
| 12999502 | Shim, Top Hinge (right) | |
||||
| 32 | WP7101P126-60 | Screw, Block (Replaces:12990303) | |
|||
| 33 | W10917988 | Hinge, Center (rt) (apollo Grey) (Replaces:13000002AP) | |
|||
| 34 | W10216614 | Sweep, Water Valve (single) | |
