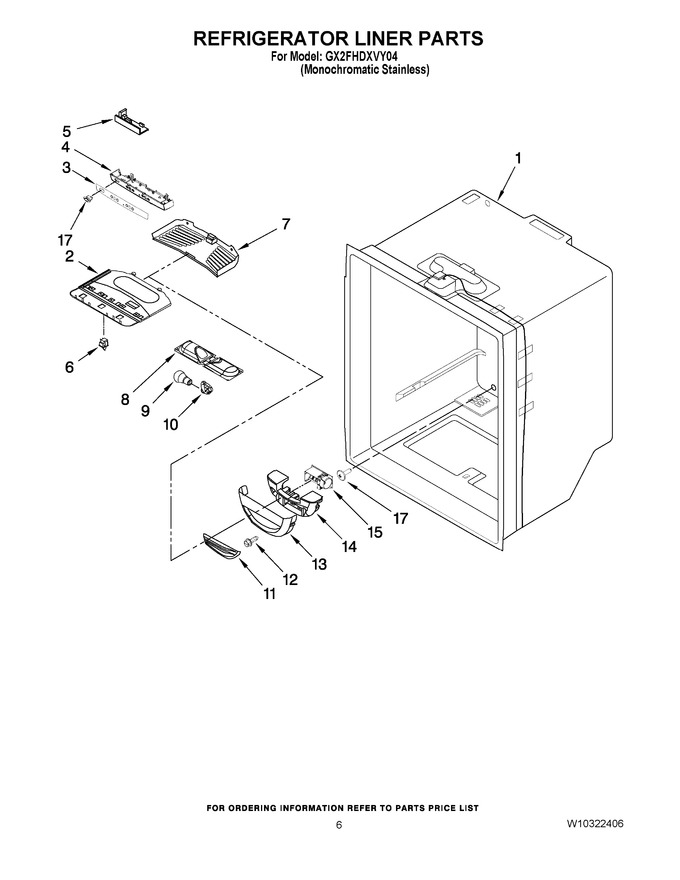

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | N/P | Liner (not A Serviceable Part) | ||||
2 | 12806303 | Module, Light | ||||
3 | W10316011 | Overlay | ||||
4 | WP12806407 | Module, Control | ||||
5 | WPW10503278 | Board, Control (Replaces:12784415V) | ||||
6 | W11291138 | Switch, Light (2) (Replaces:12466104) | ||||
7 | W11284721 | Cover, Light (Replaces:12806501) | ||||
8 | 12806601 | Housing, Light (Replaces:12806601V) | ||||
9 | 8009 | Bulb, Light (2) (Replaces:W10194422V) | ||||
10 | W11447232 | Socket, Light (2) (Replaces:12570701V) | ||||
11 | 67003900 | Insert, Damper Cover` (Replaces:12806801) | ||||
12 | WP400021-1 | Screw (Replaces:12990604) | ||||
13 | WP12806701 | Cover, Damper | ||||
14 | WP13012402 | Insulation | ||||
15 | WPW10196393 | Control, Damper | ||||
17 | W11478401 | Switch, Energy Saver (Replaces:12861601) | ||||
NI | W11478401 | Harness, Controls Rc Light With Thermistors (Replaces:W10216622) |
