01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System

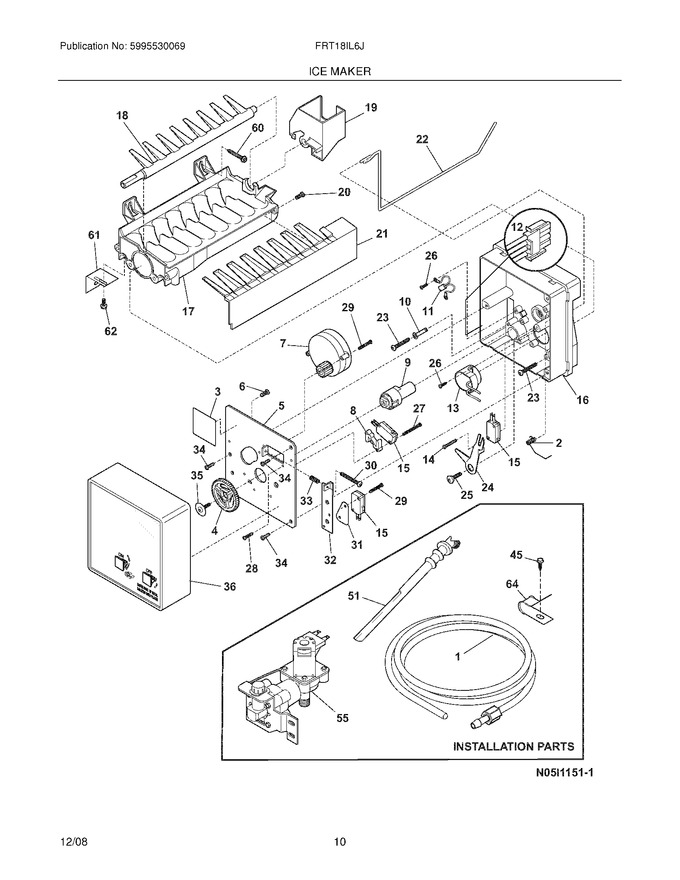

11 - Ice Maker
| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 241850615 | Tube-water Inlet,valve To I.m. (Replaces:218976921) |  |
|||
| 2 | 5304469396 | Spring-shutoff Arm,ice Maker (Replaces:5304456650) | |
|||
| 3 | 5304456657 | Nameplate | |
|||
| 4 | 5304469403 | Gear (Replaces:5304456658) | |
|||
| 5 | 5304456659 | Plate-mounting | |
|||
| 6 | 5304456691 | Screw,m 3x20 No.3 ,valve Plate | |
|||
| 7 | 241798231 | Motor-ice Maker Svo (Replaces:5304445222) | |
|||
| 8 | 5304469404 | Spacer-hold Switch (Replaces:5304456661) | |
|||
| 9 | 5304469402 | Cam (Replaces:5304456662) | |
|||
| 10 | 5304456689 | Washer,nylon | |
|||
| F11 | 5304456663 | Thermal Cutoff,ice Maker ,complete Assy | |
|||
| F12 | 5304456875 | Harness-wiring,icemaker | |
|||
| 13 | 5304456665 | Thermostat,ice Maker | |
|||
| 14 | 5304456666 | Screw,m 3x20 No.2 ,(6) | |
|||
| F15 | 5304456667 | Switch-micro,(3) | |
|||
| 16 | 5304456668 | Support | |
|||
| 17 | 241798231 | Mold-ice Maker,w/therm Cut Off (Replaces:5304456669) | |
|||
| 18 | 5304469384 | Ejector-ice (Replaces:5304456670) | |
|||
| 19 | 241798231 | Bearing & Inlet,fill Cup (Replaces:5304456671) | |
|||
| 20 | 5304455677 | Screw,8-32 X 3/8 | |
|||
| 21 | 241798231 | Ice Stripper (Replaces:5304456672) | |
|||
| 22 | 5304469377 | Shut-off Arm (Replaces:5304456673) | |
|||
| 23 | 5304456674 | Screw,m 4x25 No.2 ,mold-to-support ,(2) | |
|||
| 24 | 5304456675 | Lever Arm | |
|||
| 25 | 5304456676 | Screw,m 4x12.8 No.2 ,lever Arm/sprt | |
|||
| 26 | 5304455680 | Screw,plask ,4-14 X 3/8 | |
|||
| 27 | 5304456677 | Screw,m 3x25 No.3 ,hold Switch Mtg ,(2) | |
|||
| 28 | 5304456660 | Screw,m 4x6 No.2 | |
|||
| 29 | 5304456678 | Screw,m 3x12 No.3 ,(2) | |
|||
| 30 | 5304456679 | Screw-timing Adj,m 4x25 No.3 | |
|||
| 31 | 5304469406 | Insulator (Replaces:5304456680) | |
|||
| 32 | 5304456681 | Plate-valve Switch | |
|||
| 33 | 5304469401 | Spring,timing Adjust (Replaces:5304456682) | |
|||
| 34 | 241679901 | Screw,m 4x12 No.2 ,(3) (Replaces:5304456683) | |
|||
| 35 | 5304456684 | Screw | |
|||
| 36 | 5304469385 | Cover-ice Maker (Replaces:5304456685) | |
|||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile | |
|||
| 51 | 241796405 | Tube-water,ice Mold Fill ,extension (Replaces:241523501) | |
|||
| F55 | 242252603 | Valve-water,single Solenoid , 60 Hz ,105/120 V (Replaces:241803701) | |
|||
| 60 | 218362501 | Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2) | |
|||
| 61 | 218721500 | Bracket-leveling,ice Maker (Replaces:5304456686) | |
|||
| 62 | 5304456687 | Screw-im Brkt Mtg,pan Hd Phillips ,8-32t X 0.375 | |
|||
| 64 | 5304455846 | Clamp,.31 Id ,steel ,water Tube | |
|||
| NI | 241798231 | Ice Maker,radius Cube ,115 V ,svce (Replaces:241642501) | |
|||
| 5304445223 | Spring Beam | |
||||
| 5304456690 | Label,id Plate | |
||||
| 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker | |
||||
| 5304456693 | Nut,m 3.5 | |
||||
| 5304456737 | Washer | |
||||
| 241642601 | Harness-wiring Svo | |
||||
| 5304456692 | Washer | |
||||
| 5304456688 | Terminal | |
