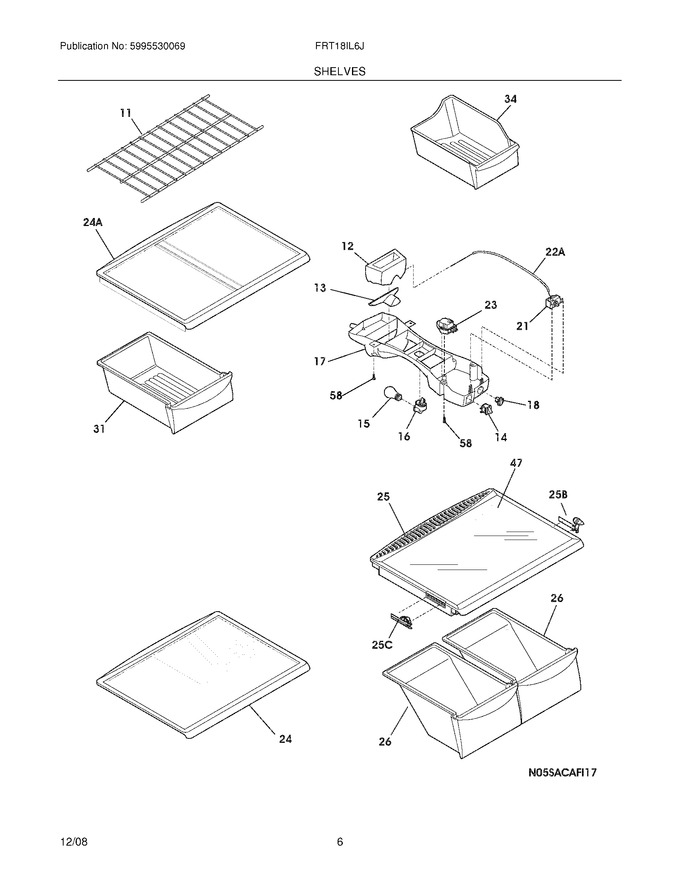

Diagram #	Part Number		Description	Series	Find a Video
11	240358008		Shelf,freezer ,full-width ,wire   (Replaces:240358005)
12	241542001		Diffuser,air ,top
13	240362601		Diffuser-air,bottom
F14	241554901		Switch-light/lamp
15	316538904		Light Bulb   (Replaces:241555401)
16	241559801		Socket-light
17	240352703		Control Box   (Replaces:240352702)
18	240360801		Knob-temp Control
F21	241537103		Control-temperature   (Replaces:5304421256)
F23	215846602		Timer-defrost   (Replaces:241621501)
24	240358926		Shelf-``spill-safe``,sliding   (Replaces:240358905)
25	240364787		Cover-crisper Pan   (Replaces:240364714)
26	240337103		Pan-crisper,clear ,(2) ,no Graphics
31	240530811		Pan-meat,w/o Graphics ,clear
34	240385201		Container,ice Bin
47	240350608		Insert-pan Cover,glass   (Replaces:241711219)
58	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces:240468201)
24A	240358926		Shelf-``spill-safe``,sliding ,w/pan Hanger   (Replaces:240358906)
25B	241613501		Control-humidity,rh
25C	241613502		Control-humidity,lh
FNI	240388701		Wiring Harness,control Box
NI	5304455649		Screw,pan Hd ,6-20 X 0.438
	240568606		Seal   (Replaces:240568607)
	241868097		Energy Guide
