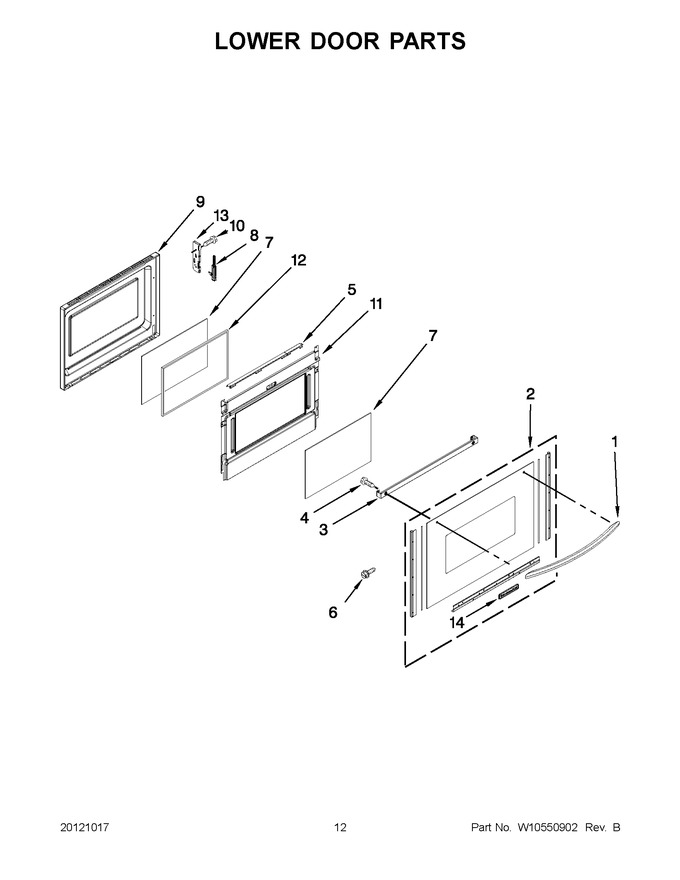

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10289074 | Handle, Door (white) |  |
|||
| WPW10289076 | Handle, Door (stainless) | |
||||
| W10289075 | Handle, Door (black) | |
||||
| 2 | W10346127 | Assembly, Glass Door (stainless) | |
|||
| W10346121 | Assembly, Glass Door (black) | |
||||
| W10346122 | Assembly, Glass Door (white) | |
||||
| 3 | WPW10294695 | Bracket, Handle | |
|||
| 4 | WPW10317886 | Screw, Handle | |
|||
| 5 | WPW10272594 | Frame, Glass | |
|||
| 6 | WPW10292297 | Screw | |
|||
| 7 | WP9757706 | Glass, Inner | |
|||
| 8 | WPW10335433 | Hinge, Door (right) | |
|||
| WPW10335434 | Hinge, Door (left) | |
||||
| 9 | WPW10292008 | Lining, Door | |
|||
| 10 | WP4449040 | Screw | |
|||
| 11 | W10340464 | Retainer, Insulation | |
|||
| 12 | WPW10321285 | Insulation, Door | |
|||
| 13 | WPW10272328 | Receiver (right) | |
|||
| WPW10272329 | Receiver (left) | |
||||
| 14 | WPW10243391 | Badge (stainless) | |
|||
| W10046670 | Badge (white) | |
||||
| W10046640 | Badge (black) | |
