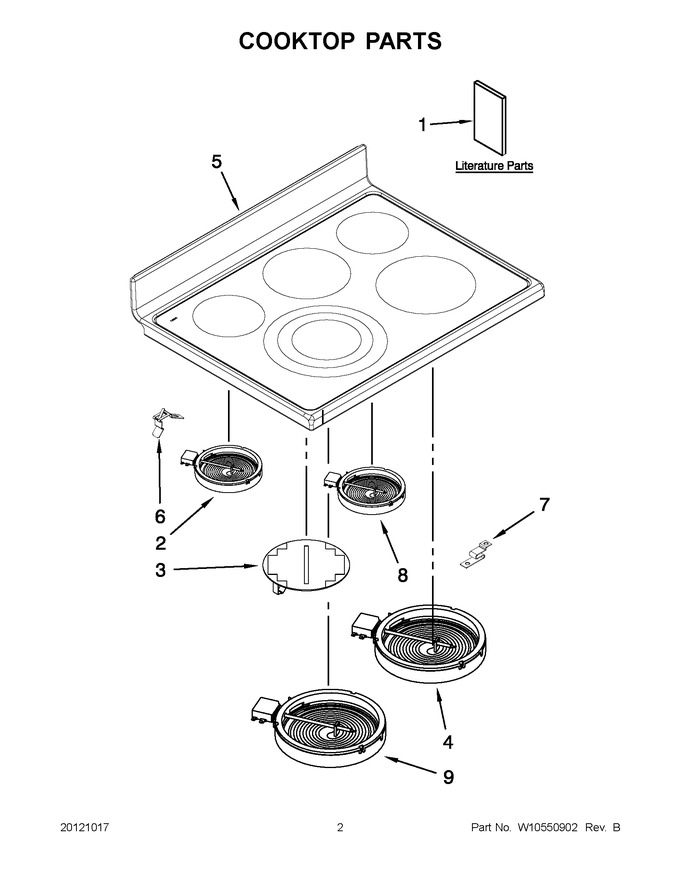

01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Chassis Parts
03 - Chassis Parts

Diagram for 04 - Internal Oven Parts
04 - Internal Oven Parts

Diagram for 05 - Upper Door Parts
05 - Upper Door Parts

Diagram for 06 - Lower Door Parts
06 - Lower Door Parts

Diagram for 07 - Optional Parts (not Included)
07 - Optional Parts (not Included)


New Model Search:



Manufacturer: Whirlpool

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
1 W10430931 Use & Care Guide Find a Video
W10430958 Instructions, Installation Find a Video
W10457105 Sheet, Tech Find a Video
9762761 Tips, Safer Cooking (english) Find a Video
2 WP8273994 Element, Ribbon (1200w) (left Rear) Find a Video
3 WP9762851 Element, Warm Zone (120v) Find a Video
4 WPW10251107 Element, Hyper (3200w) (right Front) Find a Video
5 W10336328 Cooktop (black)   (Replaces:W10260153) Find a Video
W10336337 Cooktop (white)   (Replaces:W10299112) Find a Video
W10336329 Cooktop (stainless)   (Replaces:W10260155) Find a Video
6 WPW10225448 Spring, Element Find a Video
7 WPW10260946 Support, Element Find a Video
8 WPW10270604 Element, Surface (700w) (right Rear) Find a Video
9 WPW10259005 Element, Triple (2700w) (left Front) Find a Video
