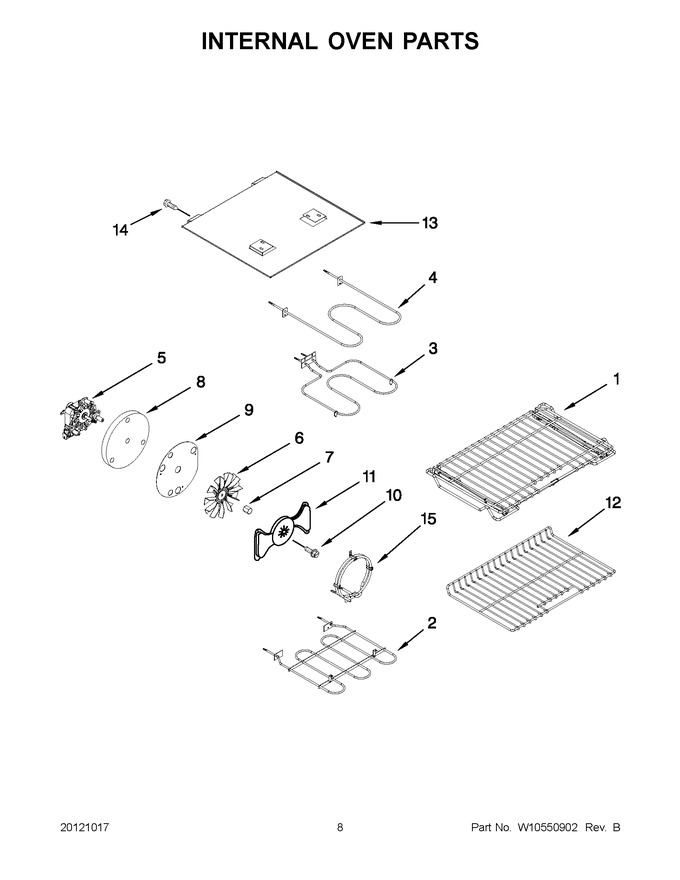

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10570870 | Rack, Oven (telescoping) (Replaces:W10273852) |  |
|||
| 2 | W11101534 | Element, Broil (lower) (Replaces:W10249979) | |
|||
| 3 | W11662148 | Element, Bake (upper & Lower) (Replaces:W10249981) | |
|||
| 4 | W10317476 | Element, Broil (upper) | |
|||
| 5 | W11235883 | Motor, Convection (Replaces:W10272341) | |
|||
| 6 | W10758272 | Blade, Fan (Replaces:W10116351) | |
|||
| 7 | WPW10116349 | Nut, Acorn | |
|||
| 8 | W10274268 | Insulation, Convection Motor | |
|||
| 9 | W10339476 | Plate, Insulation | |
|||
| 10 | WP4449154 | Screw | |
|||
| 11 | 8303962BU | Cover, Fan | |
|||
| 12 | W11550107 | Rack, Oven (Replaces:W10284950) | |
|||
| 13 | W10319762 | Shield, Broil | |
|||
| 14 | 7101P434-60 | Screw | |
|||
| 15 | W10271639 | Element, Convection (240vac) | |
