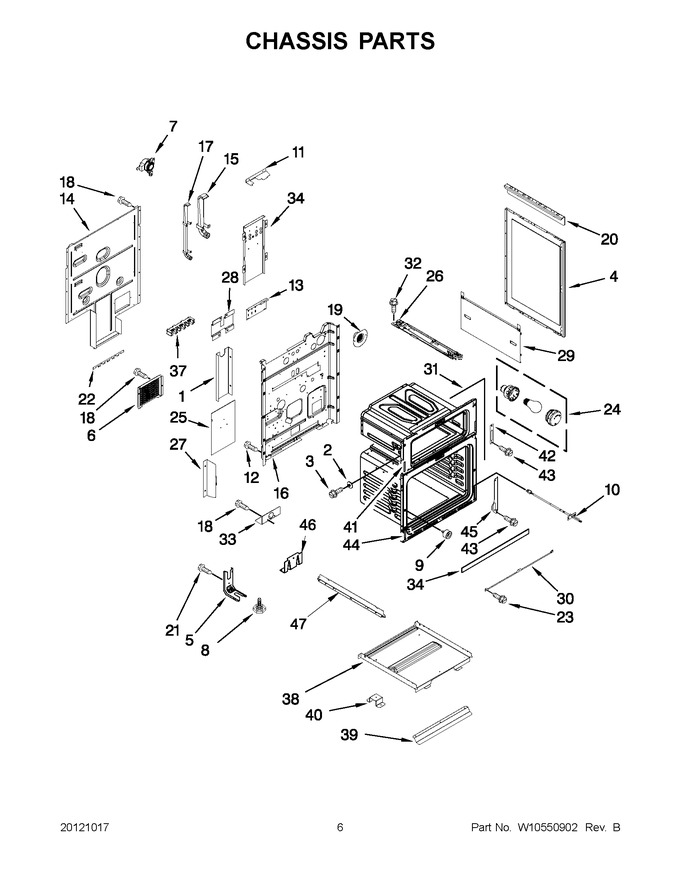

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10332459 | Shield, Heat |  |
|||
| 2 | WPW10237689 | Spacer, Side Panel | |
|||
| 3 | WPW10267456 | Screw, Shoulder | |
|||
| 4 | WPW10330375 | Panel, Side (black) (Replaces:W10260942) | |
|||
| WPW10330376 | Panel, Side (white) (Replaces:W10260943) | |
||||
| 5 | 3801F656-51 | Bracket, Anti-tip | |
|||
| 6 | W10312612 | Cover, Access (terminal Block) | |
|||
| 7 | WP7403P899-60 | Switch, High Limit | |
|||
| 8 | W11665456 | Foot, Leveler (Replaces:7101P507-60) | |
|||
| 9 | W10105790 | Bumper & Screw | |
|||
| 10 | WP7430P044-60 | Sensor, Oven | |
|||
| 11 | W10268559 | Cover, Lower Wire | |
|||
| 12 | WP90767 | Screw (Replaces:7101P426-60) | |
|||
| 13 | W10332449 | Shield, Cord | |
|||
| 14 | WPW10261386 | Cover, Main Wire | |
|||
| 15 | W10337391 | Tube, Vent (upper) | |
|||
| 16 | WPW10260583 | Back, Main | |
|||
| 17 | WPW10323793 | Tube, Vent (lower) | |
|||
| 18 | 7101P434-60 | Screw | |
|||
| 19 | W10322408 | Adapter (vent Tube) | |
|||
| 20 | W10319087 | Bracket, U Channel | |
|||
| 21 | 7101P485-60 | Screw | |
|||
| 22 | 8036P012-60 | Shield, Power Cord | |
|||
| 23 | WP98008545 | Screw (Replaces:7101P633-60) | |
|||
| 24 | W11594027 | Assembly, Light (Replaces:W10512757) | |
|||
| 25 | W10311987 | Shield, Cord Right | |
|||
| 26 | WPW10471348 | Lock, Integrated Light | |
|||
| 27 | W10268560 | Cover, Wire Lower | |
|||
| 28 | 7003P104-60 | Insulator,heat Shield | |
|||
| 29 | WPW10253471 | Shield, Side Insulation | |
|||
| 30 | WPW10299886 | Trim, Kickplate | |
|||
| 31 | W10337392 | Gasket, Oven Door (upper) | |
|||
| WPW10269069 | Gasket, Oven Door (lower) | |
||||
| 32 | 74003975 | Screw (Replaces:7101P375-60) | |
|||
| 33 | W10190166 | Bracket, Power Supply | |
|||
| 34 | W10261388 | Bracket, Terminal | |
|||
| 37 | WPW10245259 | Block, Terminal (Replaces:7401P039-60) | |
|||
| 38 | W10548601 | Pan, Element (Replaces:W10253469) | |
|||
| 39 | W10253470 | Bracket, Retaining | |
|||
| 40 | W10260545 | Clip, Retaining | |
|||
| 41 | WPW10308655 | Front, Main (upper) | |
|||
| 42 | W10333442 | Cover, Hinge (upper) | |
|||
| 43 | WP4449040 | Screw | |
|||
| 44 | WPW10308654 | Front, Main (lower) | |
|||
| 45 | W10410463 | Cover, Hinge (left) | |
|||
| W10410461 | Cover, Hinge (right) | |
||||
| 46 | W10260703 | Support, Lower Oven | |
|||
| 47 | W10357697 | Bracket, Side Panel | |
|||
| NI | WPW10271637 | Insulation, Floor | |
|||
| WPW10308393 | Insulation, Wrapper | |
||||
| WPW10322111 | Insulation, Back | |
||||
| WPW10204079 | Insulation, Middle | |
||||
| W10204085 | Insulation, Main Front Strip | |
||||
| W10272326 | Insulation, Hidden Bake Pouch | |
