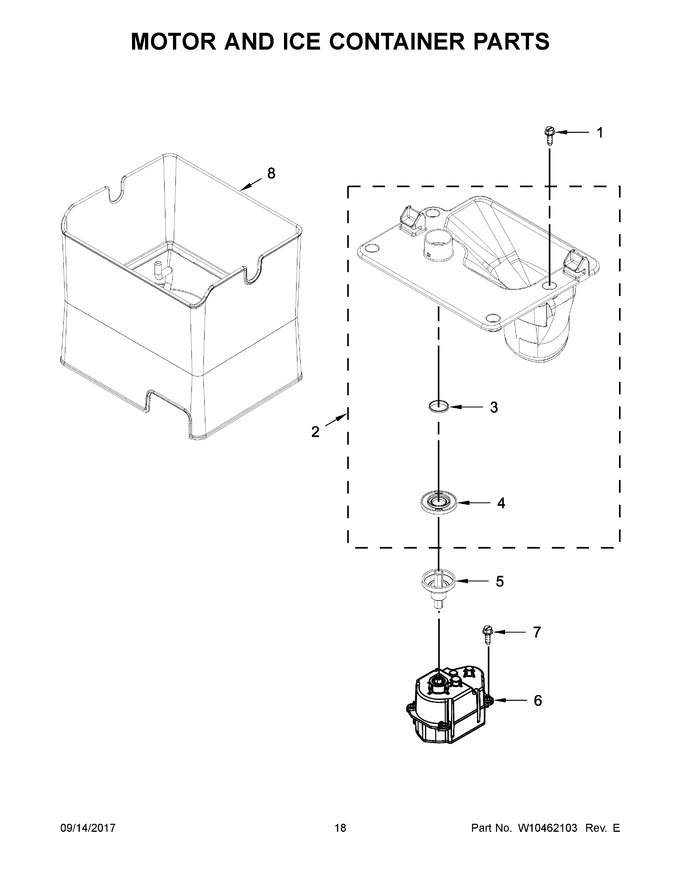

Diagram # Part Number Description Series Find a Video
1 WPW10272364 Screw Find a Video
2 W10837274 Plate, Ice Chute   (Replaces:W10347051) Find a Video
3 WP2198628 Seal Find a Video
4 W10847834 Clip, Retainer   (Replaces:W10347120) Find a Video
5 W11509548 Shaft, Motor   (Replaces:W10347114) Find a Video
6 W10822606 Motor, Dispenser   (Replaces:W10215646) Find a Video
7 WP8281163 Screw (stainless) Find a Video
8 WPW10347093 Assembly, Ice Container Find a Video
