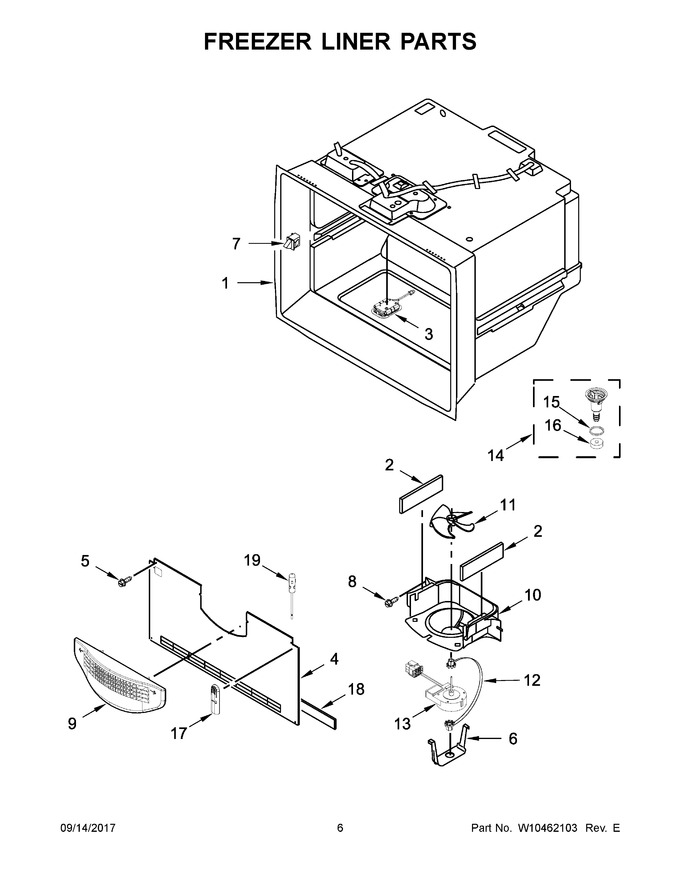

Diagram # Part Number Description Series Find a Video
1 N/P Liner (not A Seviceable Part) Find a Video
2 W10856123 Gasket, Foam   (Replaces:A3189392) Find a Video
3 W11683241 Assembly, Led Light Module   (Replaces:W10637153) Find a Video
4 W11690163 Cover, Evaporator   (Replaces:W10513424) Find a Video
5 67006425 Screw   (Replaces:12990511) Find a Video
6 W11712696 Clip, Fan Motor   (Replaces:12956601) Find a Video
7 W11384469 Switch, Light   (Replaces:C3680310V) Find a Video
8 WP98165 Screw   (Replaces:12990504) Find a Video
9 W10871842 Grille, Air (freezer)   (Replaces:W10496613) Find a Video
10 WPW10363507 Shroud, Evaporator Fan Find a Video
11 WP67006337 Blade, Fan   (Replaces:12986101) Find a Video
12 W11676465 Grommet, Fan Motor   (Replaces:12951101) Find a Video
13 WPW10514110 Motor, Evaporator (includes Harness, Thermistor, And Defrost Thermostat) Find a Video
14 W10503218 Assembly, Drain Funnel Find a Video
15 WPM0500703 Seal Find a Video
16 WPB8381501 Gasket, Drain Find a Video
17 W11661208 Cover, Thermistor   (Replaces:W10405166) Find a Video
18 W10668165 Gasket, Dual Evaporator   (Replaces:W10531268) Find a Video
19 W10316760 Thermistor   (Replaces:W10280385) Find a Video
