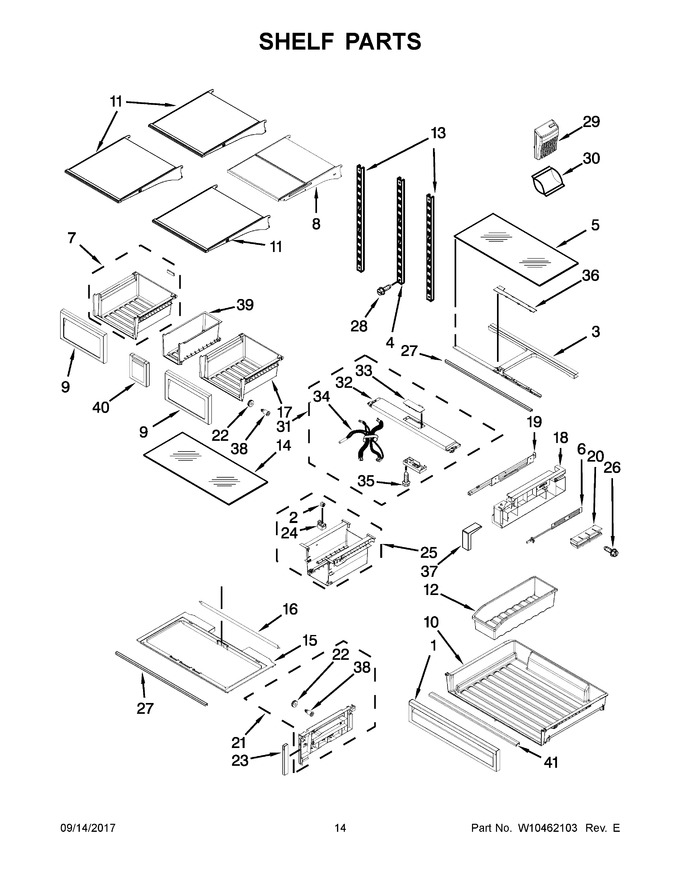

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10510417 | Front, Pantry |  |
|||
| 2 | W10248789 | Roller, Center | |
|||
| 3 | WPW10489978 | Support, Pantry | |
|||
| 4 | WPW10248516 | Ladder, Center | |
|||
| 5 | WPW10628815 | Glass, Pantry | |
|||
| 6 | W10342618 | Heater, Pantry | |
|||
| 7 | W10850377 | Pan, Crisper (Replaces:W10422706) | |
|||
| 8 | WPW10709177 | Shelf, Tuck (Replaces:W10578242) | |
|||
| 9 | W10839427 | Front, Crisper (Replaces:W10510695) | |
|||
| 10 | WPW10654844 | Pan, Pantry (Replaces:W10514690) | |
|||
| 11 | WPW10578239 | Shelf, Stationary | |
|||
| 12 | WPW10467369 | Divider, Pantry | |
|||
| 13 | WPW10372170 | Ladder, Side | |
|||
| 14 | WPW10628814 | Glass, Crisper | |
|||
| 15 | WPW10407377 | Cover, Crisper | |
|||
| 16 | WPW10248967 | Support, Rear | |
|||
| 17 | W10850377 | Pan, Crisper (Replaces:W10387757) | |
|||
| 18 | W10852648 | Sideplate, Pantry (left Hand) (Replaces:W10248834) | |
|||
| 19 | W10248531 | Slide, Pantry (left Hand) | |
|||
| 20 | W10432697 | Insulation, Sideplate | |
|||
| 21 | W11315531 | Sideplate, Crisper (left Hand) (Replaces:W10549601) | |
|||
| 22 | W11763411 | Roller, Guide (Replaces:W10248544) | |
|||
| 23 | WPW10248544 | Plate, Crisper Front | |
|||
| 24 | W10467415 | Housing, Roller | |
|||
| 25 | W10530314 | Assembly, Center Crisper Support | |
|||
| 26 | W10662015 | Screw (Replaces:8281136) | |
|||
| 27 | WP8281136 | Support, Front | |
|||
| 28 | WPW10236512 | Screw | |
|||
| 29 | W10423560 | Holder, Filter | |
|||
| 30 | WPW10408747 | Filter, Produce Preserver | |
|||
| 31 | W10346771A | Cover, Front (includes Led Assembly) (Replaces:W10584146) | |
|||
| 32 | WPW10732686 | Cover, Top (Replaces:W10398004) | |
|||
| 33 | WPW10398004 | Assembly, User Interface | |
|||
| 34 | WPW10565996 | Harness, Wire (includes Thermistor) | |
|||
| 35 | W10853630 | Screw (Replaces:12990204) | |
|||
| 36 | W11311945 | Support, Pantry Cover (includes Gasket) (Replaces:W10490266) | |
|||
| 37 | W10490266 | Plate, Pantry Front | |
|||
| 38 | W10467416 | Axle, Roller | |
|||
| 39 | WPW10257246 | Pan, Crisper | |
|||
| 40 | WPW10387778 | Front, Crisper | |
|||
| 41 | W10467395 | Handle, Pantry | |
|||
| 18A | W10467379 | Sideplate, Pantry (right Hand) | |
|||
| 19A | WPW10317523 | Slide, Pantry (right Hand) | |
|||
| 21A | W10248532 | Sideplate, Crisper (right Hand) | |
|||
| W10549602 | |
