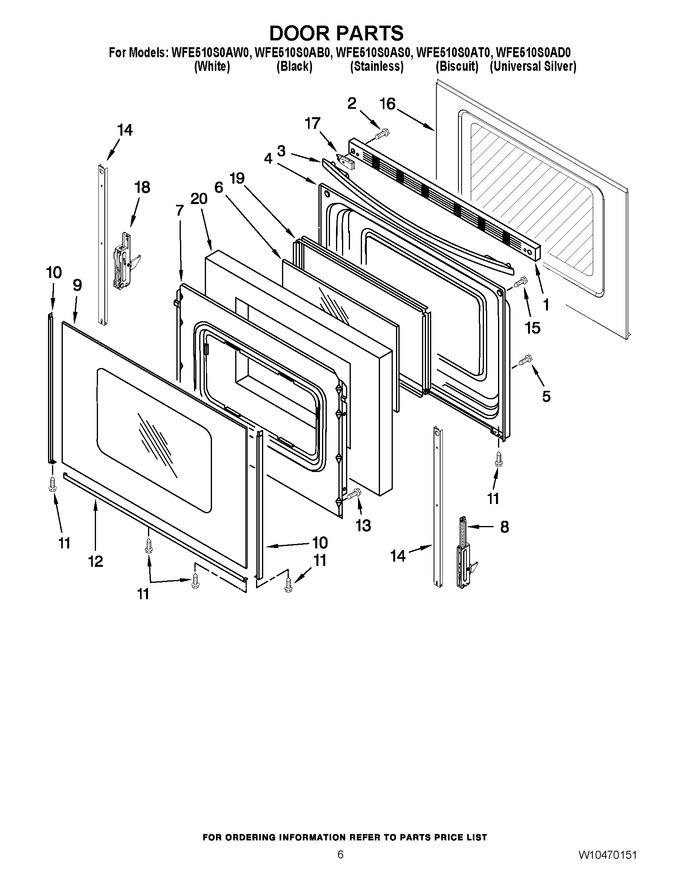

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10310923 | Trim, Top (biscuit) |  |
|||
| W10817433 | Trim, Top (white) (Replaces:W10310920) | |
||||
| WPW10310922 | Trim, Top (black) | |
||||
| 2 | WPW10465148 | Screw | |
|||
| 3 | W10300489 | Handle, Door (white) | |
|||
| W10300490 | Handle, Door (black) | |
||||
| WPW10618239 | Handle, Door (stainless) (Replaces:W10254687) | |
||||
| W10300491 | Handle, Door (biscuit) | |
||||
| 4 | WP9761344 | Liner, Door | |
|||
| 5 | WPW10031790 | Screw | |
|||
| 6 | WP8053948 | Window, Inner (Replaces:9758162) | |
|||
| 7 | W11539580 | Retainer, Insul. (Replaces:9761357) | |
|||
| 8 | WPW10299224 | Hinge, Active | |
|||
| 9 | WPW10409946 | Glass, Outer (black) | |
|||
| WPW10409945 | Glass, Outer (white) | |
||||
| WPW10409947 | Glass, Outer (biscuit) | |
||||
| 10 | W10761014 | Trim, Side (black Rh) (Replaces:8523165) | |
|||
| W10761018 | Trim, Side (black Lh) (Replaces:8523171) | |
||||
| WP8523172 | Trim, Side (white, Lh) | |
||||
| WP8523166 | Trim, Side (white, Rh) | |
||||
| WP8523167 | Trim, Side (biscuit Rh) | |
||||
| WP8523173 | Trim, Side (biscuit Lh) | |
||||
| 11 | W10491985 | Screw (Replaces:3196160) | |
|||
| 12 | WP8523175 | Trim, Lower (white) | |
|||
| WP8523177 | Trim, Lower (black) | |
||||
| WPW10067550 | Trim, Lower (universal Silver) | |
||||
| WP8523178 | Trim, Lower (biscuit) | |
||||
| 13 | W10777162 | Screw (Replaces:W10031780) | |
|||
| 14 | W11502236 | Strap, Door (Replaces:W10113759) | |
|||
| 15 | WPW10200660 | Screw | |
|||
| 16 | WPW10330077 | Door, Outer (stainless Only) | |
|||
| 17 | WPW10410341 | Standoff, Handle (stainless Only) | |
|||
| 18 | WPW10299227 | Hinge (passive) | |
|||
| 19 | WPW10316950 | Frame, Glass | |
|||
| 20 | WPW10278991 | Insulation, Door | |
