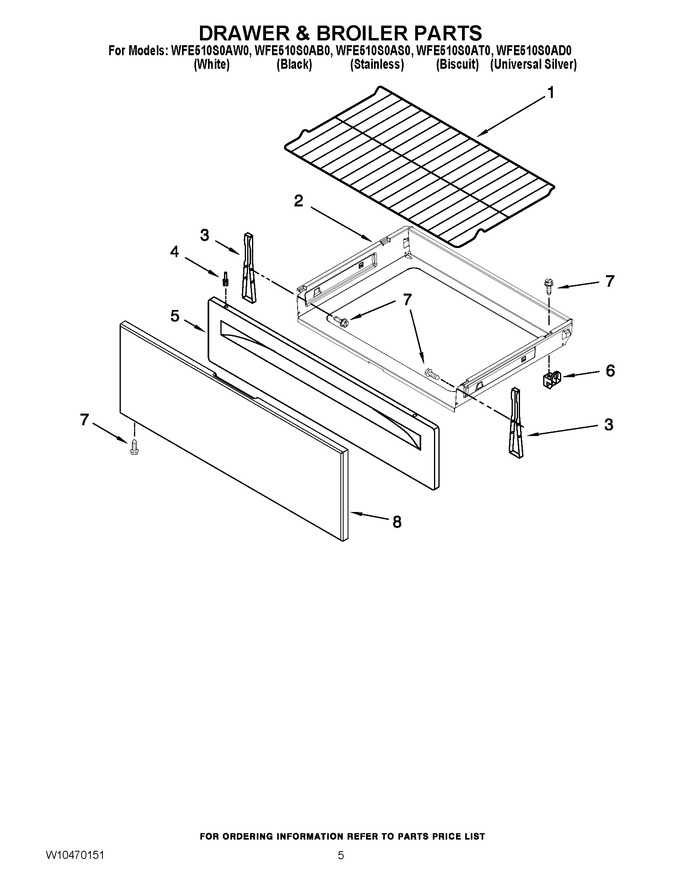

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces:W10268578) |  |
|||
| 2 | W10813962 | Drawer, Storage (Replaces:W10300032) | |
|||
| 3 | WPW10462912 | Bracket, Drawer (wht & Blk Models) | |
|||
| W10838990 | Bracket, Drawer (stainless Model) (Replaces:W10462910) | |
||||
| 4 | WP3196814 | Rivet, Push (white) | |
|||
| WP3196813 | Rivet, Push (black) | |
||||
| 5 | W11219377 | Panel, Drawer Frnt (white) (Replaces:8053339) | |
|||
| W11230488 | Panel, Drawer Frnt (black) (Replaces:8053341) | |
||||
| W11230476 | Panel, Drawer Frnt (biscuit) (Replaces:8272501) | |
||||
| WP9761694 | Panel, Drawer Frnt (universal Silver) | |
||||
| 6 | W10763667 | Glide, Drawer (Replaces:W10317899) | |
|||
| 7 | WP3196175 | Screw (Replaces:3196165) | |
|||
| 8 | WPW10330070 | Panel (stls. Mdl) | |
