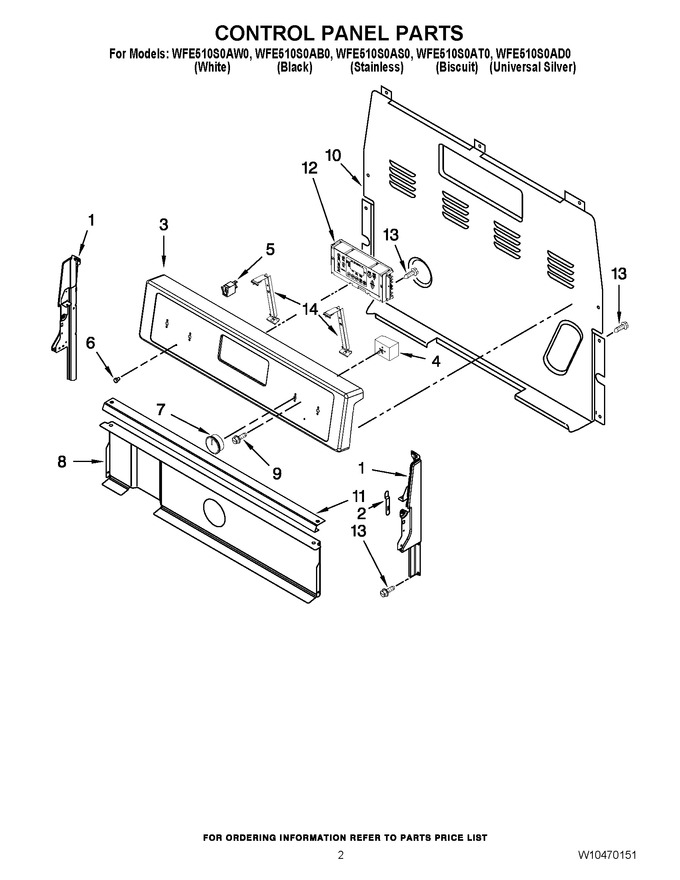

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11219370 | Endcap (white Rh) (Replaces:W10184434) |  |
|||
| W10184436 | Endcap (biscuit, Rh) | |
||||
| W11219365 | Endcap (white Lh) (Replaces:W10184433) | |
||||
| W11219664 | Endcap (black Lh) (Replaces:W10184437) | |
||||
| W11219665 | Endcap (black Rh) (Replaces:W10184438) | |
||||
| W11230611 | Endcap (biscuit, Lh) (Replaces:W10184435) | |
||||
| 2 | 3196200 | Clip, Spring | |
|||
| 3 | W11251222 | Panel, Backguard (stainless) (Replaces:W10339376) | |
|||
| W10370182 | Panel, Backguard (biscuit) | |
||||
| W11230157 | Panel, Backguard (universal Silver) (Replaces:W10370096) | |
||||
| W11231942 | Panel, Backguard (white) (Replaces:W10370091) | |
||||
| W11231943 | Panel, Backguard (black) (Replaces:W10333940) | |
||||
| 4 | WP3149400 | Switch, Infinite (right Front) (Replaces:3148954) | |
|||
| WPW10434452 | Switch, Infinite (left Front) | |
||||
| WP3149404 | Switch, Infinite (left - Right Rear) (Replaces:3148951) | |
||||
| 5 | WP8523265 | Light, Indicator | |
|||
| 6 | WP3196068 | Lens, Light | |
|||
| 7 | WPW10490038 | Knob (black) (Replaces:W10339425) | |
|||
| WPW10490037 | Knob (white) (Replaces:W10339426) | |
||||
| W10854421 | Knob (biscuit) (Replaces:W10339428) | |
||||
| 8 | W10134247 | Shield, Heat | |
|||
| 9 | WP3400882 | Screw | |
|||
| 10 | WP8272473 | Cover, Upper | |
|||
| 11 | W10525121 | Brkt-mntg Console (Replaces:W10182322) | |
|||
| 12 | WPW10734611 | Control, Range (lcc95) (white) (Replaces:W10348623) | |
|||
| WPW10734609 | Control, Range (lcc95) (stainless) (Replaces:W10424886) | |
||||
| WPW10734612 | Control, Range (lcc95) (black) (Replaces:W10348622) | |
||||
| WPW10413076 | Control, Range (lcc95) (biscuit) | |
||||
| 13 | W11233072 | Screw (Replaces:3196178) | |
|||
| 14 | W10324410 | Brkt-mntg, Eoc | |
