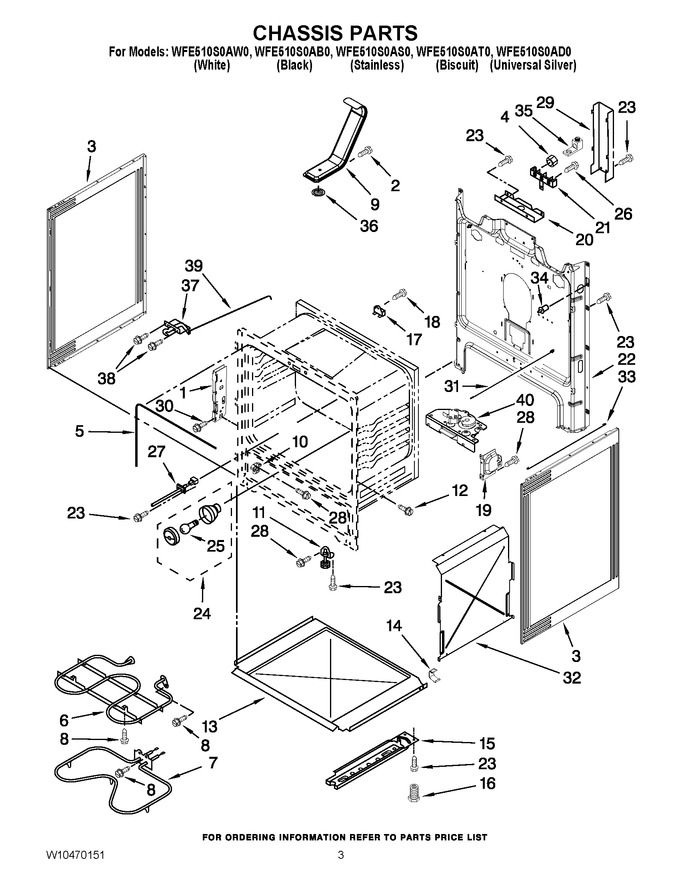

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10647259 | Receiver, Hinge (Replaces:W10289077) |  |
|||
| 2 | WP3196154 | Screw | |
|||
| 3 | W10162246 | Panel, Side (biscuit) (Replaces:W10322771) | |
|||
| WPW10162245 | Panel, Side (black) (Replaces:W10322770) | |
||||
| WPW10575396 | Panel, Side (white-textured) (Replaces:W10322769) | |
||||
| 4 | 7103P027-60 | Nut | |
|||
| 5 | W11542153 | Seal, Oven Door (Replaces:8522416) | |
|||
| 6 | W10856603 | Element, Broil (Replaces:W10308476) | |
|||
| 7 | WPW10308477 | Element, Bake | |
|||
| 8 | WP3196174 | Screw | |
|||
| 9 | WPW10134285 | Flue | |
|||
| 10 | W10763667 | Glide, Drawer Frnt (Replaces:W10317898) | |
|||
| 11 | WPW10341186 | Foot, Front | |
|||
| 12 | WPW10067840 | Screw | |
|||
| 13 | WP8054068 | Tray, Insulation | |
|||
| 14 | W10137382 | Clip, Panel | |
|||
| 15 | WPW10306546 | Rail, Base (left Hand) (Replaces:W10390007) | |
|||
| 16 | WPW10058460 | Foot, Rear | |
|||
| 17 | WP3196548 | Thermal, Fuse | |
|||
| 18 | 3196172 | Screw | |
|||
| 19 | W10404688 | Support, Oven (Replaces:W10355173) | |
|||
| 20 | 3186034 | Bracket, Service | |
|||
| 21 | WPW10245259 | Block, Terminal | |
|||
| 22 | W10289149 | Back, Main | |
|||
| 23 | W11233072 | Screw (Replaces:3196178) | |
|||
| 24 | W11594027 | Light Socket Assy (Replaces:3196701) | |
|||
| 25 | 8009 | Bulb, Oven Light (Replaces:311255) | |
|||
| 26 | WP3400016 | Screw | |
|||
| 27 | WPW10181986 | Sensor, Oven | |
|||
| 28 | WP3196557 | Screw (Replaces:3196169) | |
|||
| 29 | WPW10326122 | Cover, Terminal Box | |
|||
| 30 | W10777162 | Screw (Replaces:W10031780) | |
|||
| 31 | 9757239 | Rod - Door Switch, Rear Mount | |
|||
| 32 | 9758238 | Retainer, Side | |
|||
| 33 | W10465685 | Rod, Insl Retainer (Replaces:W10196451) | |
|||
| 34 | WP9757262 | Switch, Door | |
|||
| 35 | WPW10281322 | Kit, Bare Wire | |
|||
| 36 | 9761301 | Screen - Catalyst | |
|||
| 37 | WP9761013 | Latch, Door | |
|||
| 38 | W11169708 | Screw (Replaces:3196560) | |
|||
| 39 | W10078380 | Rod, Latch | |
|||
| 40 | WPW10107820 | Latch-mtr | |
|||
| NI | WPW10208653 | Insulation, Wrap | |
|||
| WP8272612 | Insulation, Back | |
||||
| W10333344 | Insulation, Flue | |
