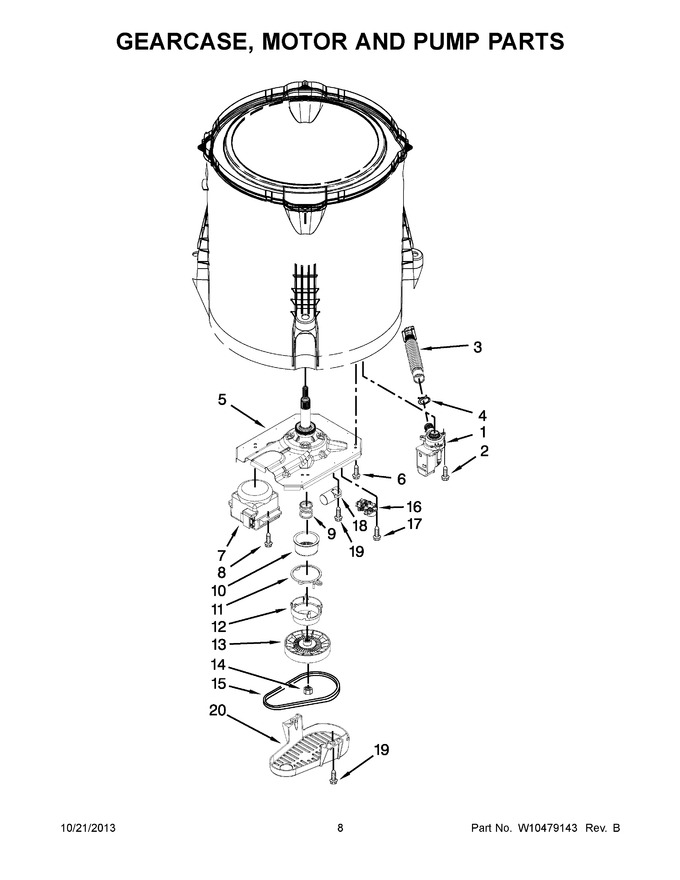

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WPW10276397 | Pump Assembly, Drain | ||||
2 | WPW10004910 | Screw | ||||
3 | W10899966 | Hose, Inner Drain Assembly (Replaces:W10215091) | ||||
4 | WP285655 | Clamp, Hose (Replaces:8317496) | ||||
5 | W11454741 | Gearcase Assembly (Replaces:W10473144) | ||||
6 | WPW10249633 | Screw | ||||
7 | WPW10006415 | Motor, Drive (Replaces:W10006425) | ||||
8 | W10182109 | Screw (Replaces:W10094780) | ||||
9 | W10721967 | Spring, Splutch (Replaces:W10006382) | ||||
10 | W10721967 | Slider, Splutch (Replaces:W10006352) | ||||
11 | W10721967 | Cam Ring, Splutch (Replaces:W10006353) | ||||
12 | W10721967 | Cam, Splutch (Replaces:W10006354) | ||||
13 | W10721967 | Pulley (Replaces:W10536113) | ||||
14 | W10759923 | Nut, Pulley (Replaces:W10604214) | ||||
15 | WPW10006384 | Belt, Drive | ||||
16 | WPW10006355 | Actuator, Shift | ||||
17 | W11596033 | Screw (Replaces:9741052) | ||||
18 | W10804665 | Capacitor, Motor Run (Replaces:W10278556) | ||||
19 | W11573574 | Screw (Replaces:357640) | ||||
20 | WPW10427633 | Shield, Pulley Cover |
