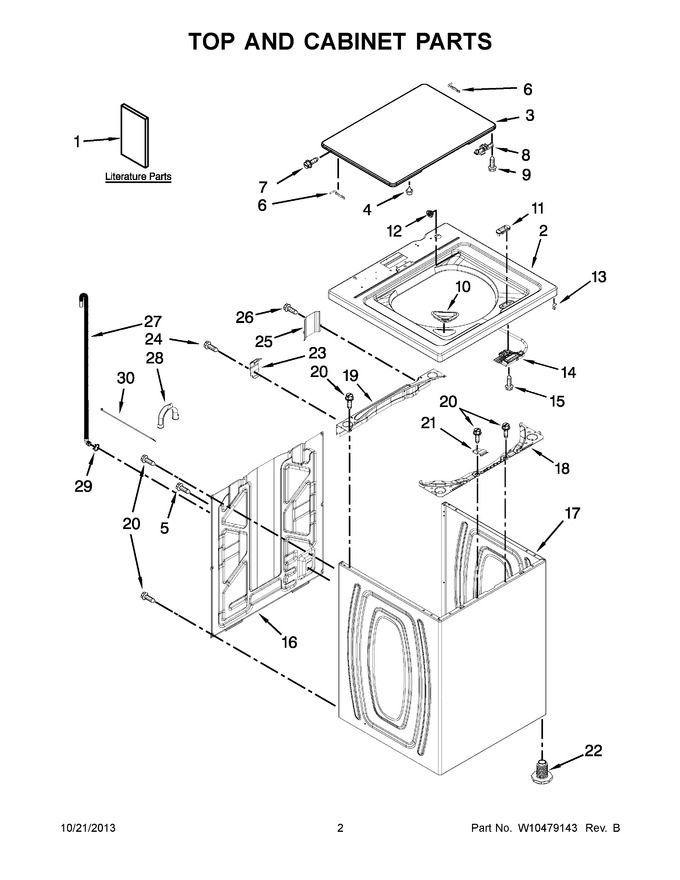

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10240509 | Installation Instructions | ||||
W10280489 | Tech Sheet | |||||
W10062977 | Energy Guide | |||||
W10420472 | Owners Manual | |||||
2 | WPW10251299 | Top (white) | ||||
3 | WPW10338625 | Lid And Bumper Assembly (white) (Replaces:W10251302) | ||||
4 | WP9724509 | Bumper, Lid | ||||
5 | WP9740848 | Screw | ||||
6 | WP91770 | Hinge, Lid | ||||
7 | WPW10119828 | Screw (Replaces:W10119872) | ||||
8 | WPW10240513 | Strike, Lid Lock (white) | ||||
9 | WPW10273971 | Screw | ||||
10 | WPW10192089 | Dispenser, Bleach | ||||
11 | WPW10392041 | Bezel, Lid Lock (white) | ||||
12 | WP21258 | Bearing, Lid Hinge | ||||
13 | WP90016 | Clip, Harness | ||||
14 | W10404050 | Latch, Lid Lock Assembly (Replaces:W10238287) | ||||
15 | WP8281163 | Screw (stainless) | ||||
16 | WPW10250884 | Panel, Rear | ||||
17 | W10596395 | Cabinet (white) (Replaces:W10251994) | ||||
18 | W11695476 | Brace, Cabinet Top - Front (Replaces:W10215098) | ||||
19 | W11089573 | Brace, Cabinet Top - Rear (Replaces:W10215099) | ||||
20 | WP489069 | Screw (Replaces:1157158) | ||||
21 | WPW10248088 | Lock, Top | ||||
22 | W10739673 | Foot Assembly, Leveling (Replaces:W10335586) | ||||
WPW10687506 | Foot, Leveling (Replaces:W10397994) | |||||
23 | W10215102 | Hinge, Top | ||||
24 | WP489128 | Screw (Replaces:W10142728) | ||||
25 | W10676061 | Cover, Harness (Replaces:W10215139) | ||||
26 | W10846509 | Screw (Replaces:3400076) | ||||
27 | W11244231 | Hose, Outer Drain Assembly (Replaces:W10221546) | ||||
28 | WPW10280024 | U-bend, Drain Hose | ||||
29 | WP356138 | Clamp, Hose | ||||
30 | WPW10339879 | Tie, Cable |
