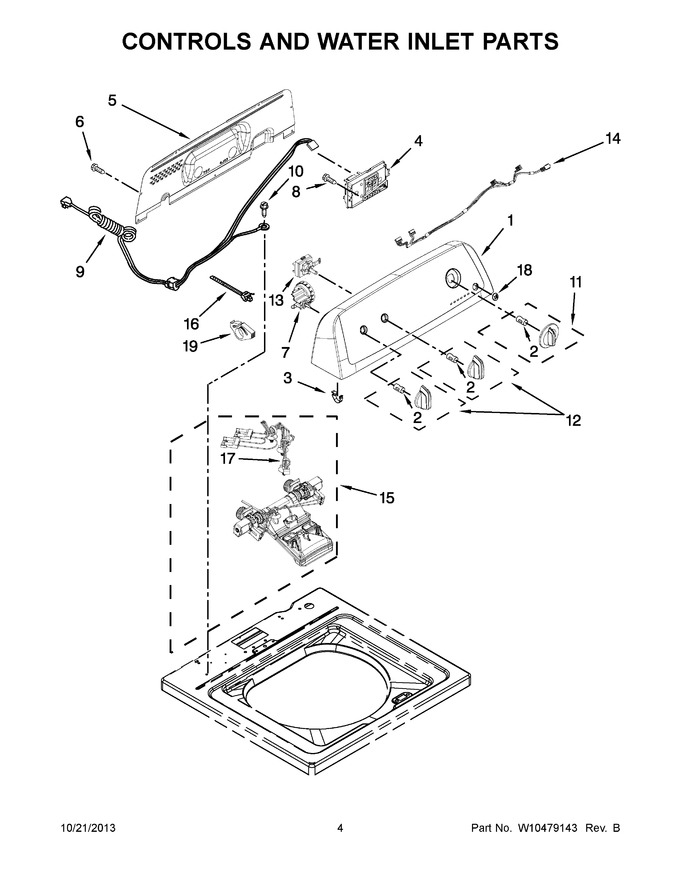

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10429632 | Panel, Console |  |
|||
| 2 | WP8536939 | Clip, Spring | |
|||
| 3 | WP8312709 | Clip, Console | |
|||
| 4 | W10484681 | Control Unit Assembly, Machine & Motor | |
|||
| 5 | W10409320 | Panel, Console Rear Cover | |
|||
| 6 | WP489069 | Screw (Replaces:1157158) | |
|||
| 7 | WPW10450959 | Switch, Water Level | |
|||
| 8 | WP90767 | Screw | |
|||
| 9 | WPW10525192 | Cord, Power | |
|||
| 10 | W10846509 | Screw (Replaces:3400076) | |
|||
| 11 | WPW10711289 | Assembly, Timer Knob (white) (Replaces:W10453946) | |
|||
| 12 | WPW10453947 | Assembly, Control Knob (white) | |
|||
| 13 | WPW10414397 | Switch, Rotary Encoder (3 Position) | |
|||
| 14 | W10475254 | Harness, Upper | |
|||
| 15 | WPW10683603 | Inlet Assembly, Water (Replaces:W10501149) | |
|||
| 16 | WPW10339879 | Tie, Cable | |
|||
| 17 | W10876654 | Harness, Valve (Replaces:W10423127) | |
|||
| 18 | WPW10251309 | Push Button, Start | |
|||
| 19 | W10348582 | Clamp, Hose | |
