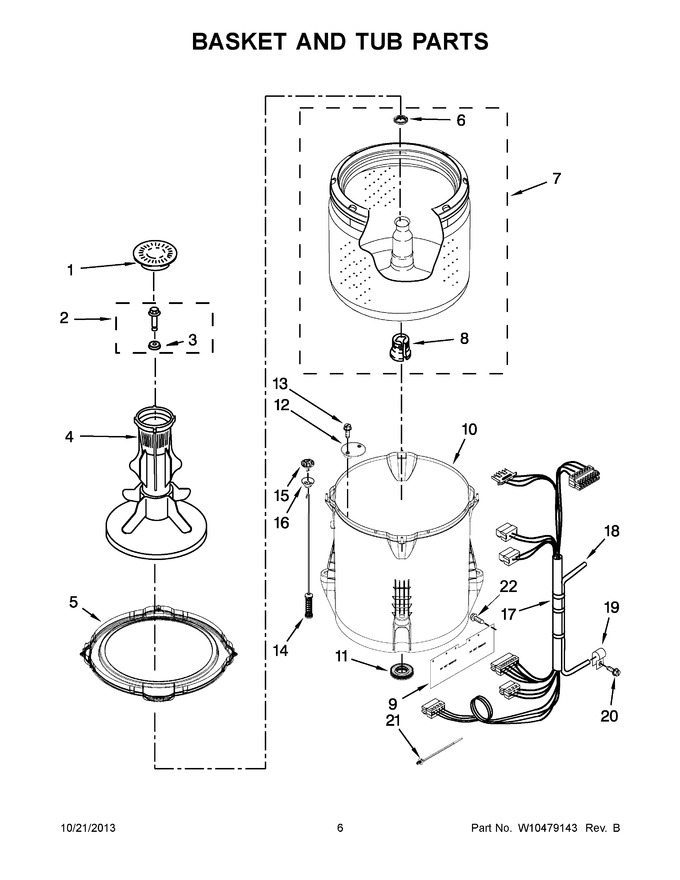

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP3352483 | Cap, Agitator |  |
|||
| 2 | W10772621 | Screw And Washer (Replaces:W10003790) | |
|||
| 3 | WP3949550 | Washer | |
|||
| 4 | WP63377 | Agitator Assembly (complete) | |
|||
| 5 | WPW10215107 | Ring, Tub | |
|||
| 6 | WP21366 | Nut, Spanner | |
|||
| 7 | W10738339 | Basket Assembly (Replaces:W10389330) | |
|||
| 8 | WP389140 | Block, Basket Drive | |
|||
| 9 | W10339098 | Shield, Splash | |
|||
| 10 | W10371566 | Tub (includes Tub Seal) (Replaces:W10238320) | |
|||
| 11 | W10324647 | Seal, Tub (Replaces:W10006371) | |
|||
| 12 | WPW10215093 | Filter, Drain Pump | |
|||
| 13 | WP8533928 | Screw (stainless) | |
|||
| 14 | W10780048 | Damper Assembly, Tub Suspension (set Of 4-includes Ball & Bushing) (Replaces:W10257088) | |
|||
| 15 | W10440729 | Ball, Suspension (set Of 4 - Includes Suspension Bushings) (Replaces:W10560146) | |
|||
| 16 | W10440729 | Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls) (Replaces:W10256551) | |
|||
| 17 | WPW10297444 | Harness, Lower (includes Pressure Hose & Cable Tie) | |
|||
| 18 | WP353244 | Hose, Pressure Switch (Replaces:W10297436) | |
|||
| 19 | W10005430 | Clamp, Cable | |
|||
| 20 | WPW10109200 | Screw (Replaces:8533943) | |
|||
| 21 | WPW10298887 | Cable Tie | |
|||
| 22 | W10429200 | Retainer, Push-in | |
