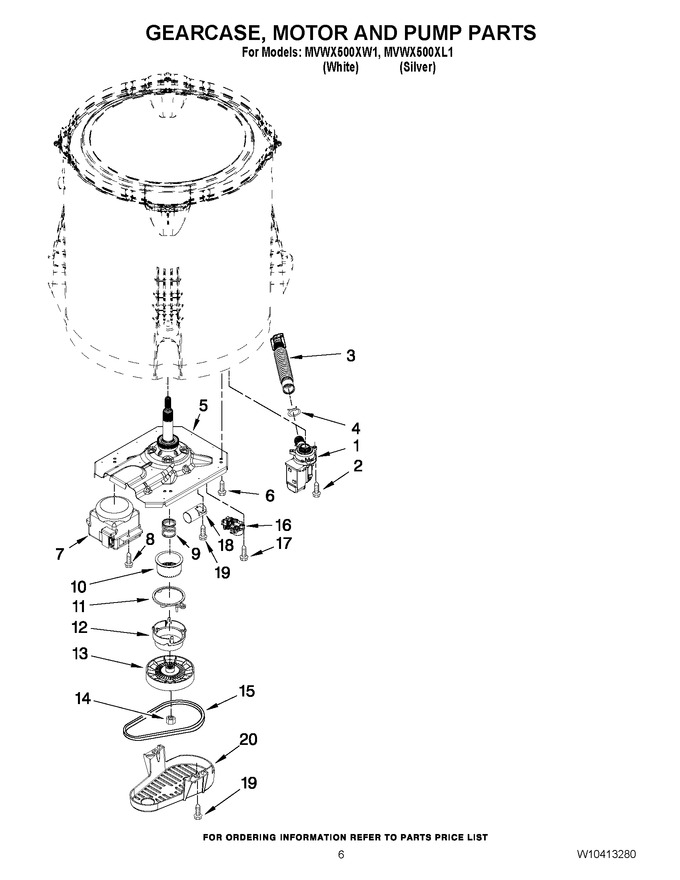

Diagram # Part Number Description Series Find a Video
1 WPW10276397 Pump Assembly, Drain Find a Video
2 WPW10004910 Screw, 12-16 X 1.25 Find a Video
3 W10899966 Hose, Inner Drain Assembly   (Replaces:W10215091) Find a Video
4 WP285655 Clamp, Hose   (Replaces:8317496) Find a Video
5 W11132267 Gearcase Assembly (includes Items 7, 8, 9, 10 & 13 On Page 5)   (Replaces:W10006401) Find a Video
6 WPW10249633 Screw, 7.2-1.6 X 30 Find a Video
7 W10836348 Motor, Drive   (Replaces:W10249628) Find a Video
8 W10182109 Screw, M8-1.25 X 20   (Replaces:W10094780) Find a Video
9 W10721967 Spring, Splutch (includes Items 10, 11, 12 & 13)   (Replaces:W10326374) Find a Video
10 W10721967 Slider, Splutch (includes Items 9, 11, 12 & 13)   (Replaces:W10006352) Find a Video
11 W10721967 Cam Ring, Splutch (includes Items 9, 10, 12 & 13)   (Replaces:W10006353) Find a Video
12 W10721967 Cam, Splutch (includes Items 9, 10, 11 & 13)   (Replaces:W10006354) Find a Video
13 W10006356 Pulley Find a Video
14 W10163336 Nut, Pulley Find a Video
15 WPW10006384 Belt, Drive Find a Video
16 WPW10006355 Actuator, Shift Find a Video
17 9741052 Screw, 6-32 X 1.00 Find a Video
18 W10804664 Capacitor, Motor Run   (Replaces:W10278117) Find a Video
19 WP22001995 Screw, 10-16 X 5/8   (Replaces:357640) Find a Video
20 WPW10427633 Shield, Pulley Cover   (Replaces:W10006383) Find a Video
