Diagram for 01 - Top And Cabinet Parts

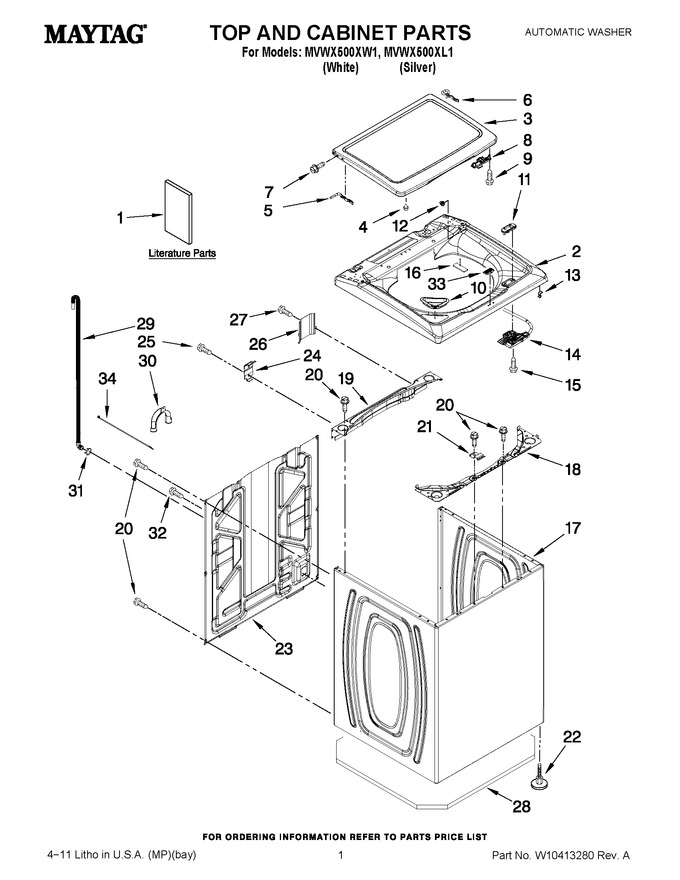

01 - Top And Cabinet Parts

Diagram for 02 - Console And Dispenser Parts
02 - Console And Dispenser Parts

Diagram for 03 - Basket And Tub Parts
03 - Basket And Tub Parts

Diagram for 04 - Gearcase, Motor And Pump Parts
04 - Gearcase, Motor And Pump Parts

Diagram for 05 - Optional Parts (not Included)
05 - Optional Parts (not Included)


New Model Search:



Manufacturer: Maytag

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
1 W10240510 Installation Instructions (spanish) Find a Video
W10062961 Energy Guide Find a Video
W10280498 Quick Start Guide Find a Video
W10338674 Tech Sheet Find a Video
W10280504 Instructions, Sound Shield Installation Find a Video
W10280467 Use & Care Guide Find a Video
W10240509 Installation Instructions (english/french) Find a Video
2 WPW10268719 Top (silver) Find a Video
WPW10238290 Top (white) Find a Video
3 W10270565 Lid (includes Item 4) (white) Find a Video
W10270567 Lid (includes Item 4) (silver) Find a Video
4 WP9724509 Bumper, Lid Find a Video
5 W10295775 Hinge, Wire (l.h.) Find a Video
6 W10294031 Hinge Wire (r.h.) Find a Video
7 WPW10119828 Screw, Lid Hinge Find a Video
8 WPW10240513 Strike, Lid Lock (white) Find a Video
W11173602 Strike, Lid Lock (dolphin)   (Replaces:W10240514) Find a Video
9 WPW10273971 Screw, 6-19 X 1/2 Find a Video
10 W10304138 Dispenser, Bleach (dolphin) Find a Video
W10854969 Dispenser, Bleach (white)   (Replaces:W10240977) Find a Video
11 WPW10392092 Bezel, Lid Lock Dolphin Find a Video
WPW10392041 Bezel, Lid Lock (white) Find a Video
12 W10293272 Bearing, Lid Hinge (left) Find a Video
W10293230 Bearing, Lid Hinge (right) Find a Video
13 WP90016 Clip, Lid Lock Harness Find a Video
14 W10404050 Latch, Lid Lock Assembly   (Replaces:W10238287) Find a Video
15 WP8281163 Screw, 8-16 X 1/2 Find a Video
16 W10684259 Pad, Lid Hinge   (Replaces:W10333228) Find a Video
17 W10596396 Cabinet (includes Items 18, 19, 20 & 22) (silver)   (Replaces:W10240528) Find a Video
W10596395 Cabinet (includes Items 18, 19, 20 & 22) (white)   (Replaces:W10251994) Find a Video
18 WPW10215098 Brace, Cabinet Top - Front Find a Video
19 W11089573 Brace, Cabinet Top - Rear   (Replaces:W10215099) Find a Video
20 WP489069 Screw, 8-18 X 3/8   (Replaces:1157158) Find a Video
21 WPW10248088 Lock, Top Find a Video
22 W10739673 Foot Assembly, Leveling   (Replaces:W10335586) Find a Video
23 WPW10250884 Panel Rear Find a Video
24 W10215102 Hinge, Top Find a Video
25 WP489128 Screw, 8-32 X 3/8   (Replaces:W10142728) Find a Video
26 W10676061 Cover, Harness   (Replaces:W10215139) Find a Video
27 W10846509 Screw, 10-23 X 5/8   (Replaces:3400076) Find a Video
28 WPW10361353 Absorber, Sound - Cabinet Bottom   (Replaces:W10317148) Find a Video
29 W11244231 Hose, Outer Drain Assembly (includes Items 30 & 31)   (Replaces:W10221546) Find a Video
30 WPW10280024 U-bend, Drain Hose Find a Video
31 WP356138 Clamp, Hose Find a Video
32 WP9740848 Screw, 8-18 X 1/2 Find a Video
33 WPW10492808 Badge, Maytag   (Replaces:W10323735) Find a Video
34 WPW10339879 Cable Tie Find a Video
