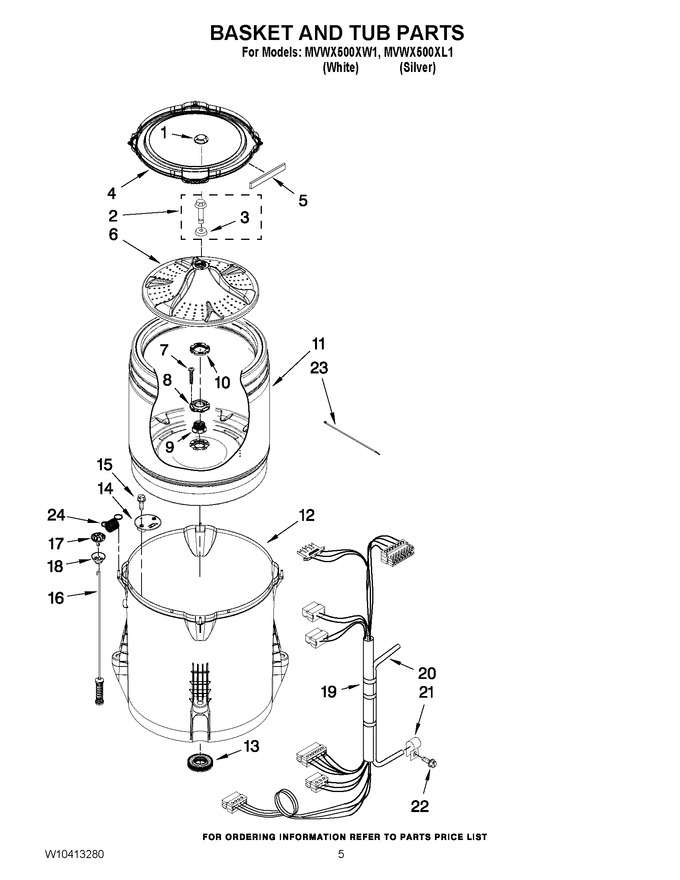

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10305251 | Cap, Impeller |  |
|||
| 2 | W10772621 | Screw & Washer Assembly (Replaces:W10003790) | |
|||
| 3 | WP3949550 | Washer | |
|||
| 4 | WPW10215146 | Tub Ring (includes Item 5) | |
|||
| 5 | W10205824 | Absorber, Impact | |
|||
| 6 | WPW10553968 | Impeller (washplate) (Replaces:W10215119) | |
|||
| 7 | WP8533953 | Screw, 8-16 X 1.000 | |
|||
| 8 | W10324651 | Hub - Driven, Basket (includes Items 7, 9 & 10) (Replaces:W10291415) | |
|||
| 9 | W10324651 | Block, Basket Drive (includes Items 7, 8 & 10) (Replaces:W10291416) | |
|||
| 10 | W10324651 | Nut, Spanner (includes Items 7, 8 & 9) (Replaces:W10291417) | |
|||
| 11 | W10324650 | Basket Assembly (includes Items 7, 8, 9 & 10) (Replaces:W10238268) | |
|||
| 12 | W10324648 | Tub (includes Item 13) (Replaces:W10238301) | |
|||
| 13 | W10324647 | Seal, Tub (Replaces:W10006371) | |
|||
| 14 | WPW10215093 | Filter, Drain Pump | |
|||
| 15 | WP8533928 | Screw, 8-18 X 3/4 | |
|||
| 16 | W10780051 | Damper Assembly, Tub Suspension (set Of 4-includes Items 17 & 18) (Replaces:W10257085) | |
|||
| 17 | W10440729 | Ball, Suspension (set Of 4 - Includes Item 18) (Replaces:W10215136) | |
|||
| 18 | W10440729 | Bushing, Suspension (set Of 4 - Includes Item 17) (Replaces:W10256551) | |
|||
| 19 | WPW10297443 | Harness, Lower (includes Item 20) (Replaces:W10328392) | |
|||
| 20 | WP353244 | Hose Pressure Switch (Replaces:8572540) | |
|||
| 21 | W10005430 | Clamp, Pressure Hose Retainer | |
|||
| 22 | WPW10109200 | Screw, 10-16 X 3/4 (Replaces:8533943) | |
|||
| 23 | WPW10339879 | Cable Tie | |
|||
| 24 | W10400895 | Spring, Tub Centering (Replaces:W10348658) | |
