Diagram # Part Number Description Series Find a Video
1 W10272444 Console (white) Find a Video
WPW10293204 Console (silver) Find a Video
2 WPW10251381 Knob, Control (includes Item 24) (white) Find a Video
WPW10251384 Knob, Control (includes Item 24) (silver) Find a Video
3 WPW10272630 User Interface Find a Video
4 W10853898 Screw, 8-16 X 3/4   (Replaces:W10219342) Find a Video
5 WP8312709 Clip, Console Find a Video
6 W10405815 Control Unit Assembly, Machine & Motor Find a Video
7 W10420984 Panel, Console Rear Cover   (Replaces:W10269597) Find a Video
8 WP488729 Screw, 8-18 X 1/2   (Replaces:3390647) Find a Video
9 WP489069 Screw, 8-18 X 3/8   (Replaces:1157158) Find a Video
10 W10280079 Seal, Console Find a Video
11 WPW10525195 Cord, Power   (Replaces:W10266797) Find a Video
12 W10846509 Screw, Power Cord Ground   (Replaces:3400076) Find a Video
13 W11158805 Housing Assembly - Dispenser   (Replaces:W10240963) Find a Video
14 W11168740 Valve, Cold Water Inlet   (Replaces:W10240949) Find a Video
15 W11168743 Valve, Hot Water Inlet   (Replaces:W10240948) Find a Video
16 W10240967 Harness, Valve Find a Video
17 3400061 Screw, Dispenser Housing Mounting Find a Video
18 WPW10109200 Screw, Inlet Valve Mounting   (Replaces:97787) Find a Video
19 WPW10240946 Bezel, Dispenser Find a Video
20 WPW10658444 Drawer, Dispenser Assembly   (Replaces:W10240960) Find a Video
21 W10285493 Harness, User Interface Find a Video
22 WP9740848 Screw, 8-18 X 1/2 Find a Video
23 W10326923 Spacer, Knob Find a Video
24 WP8536939 Clip, Knob Find a Video
25 W10274524 Tensioner, Facia Find a Video
26 W10305134 Bezel, Cycle Trim Find a Video
27 3196172 Screw, 6-19 X 3/8 Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

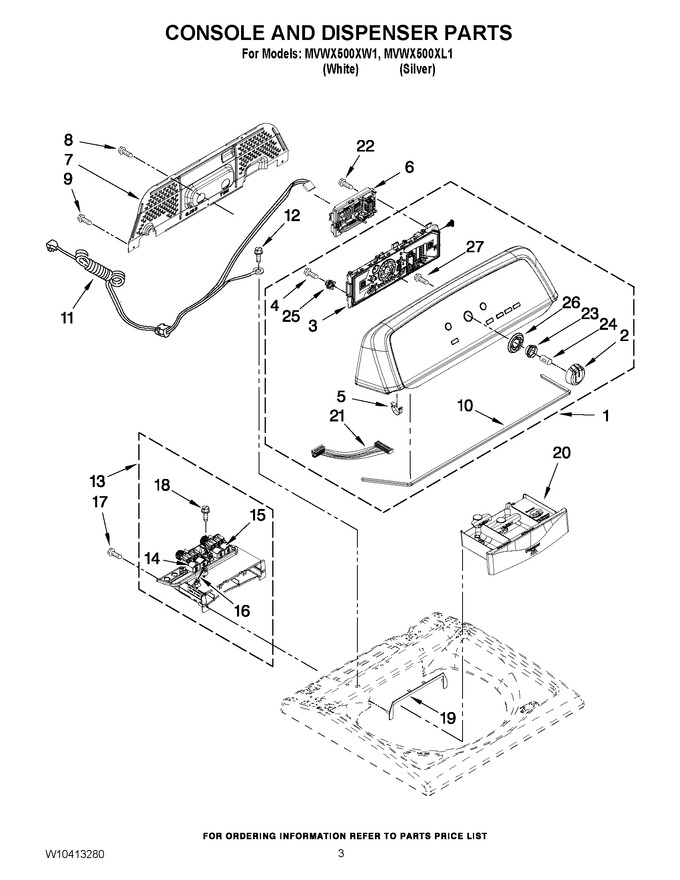

Diagram for MVWX500XW1
