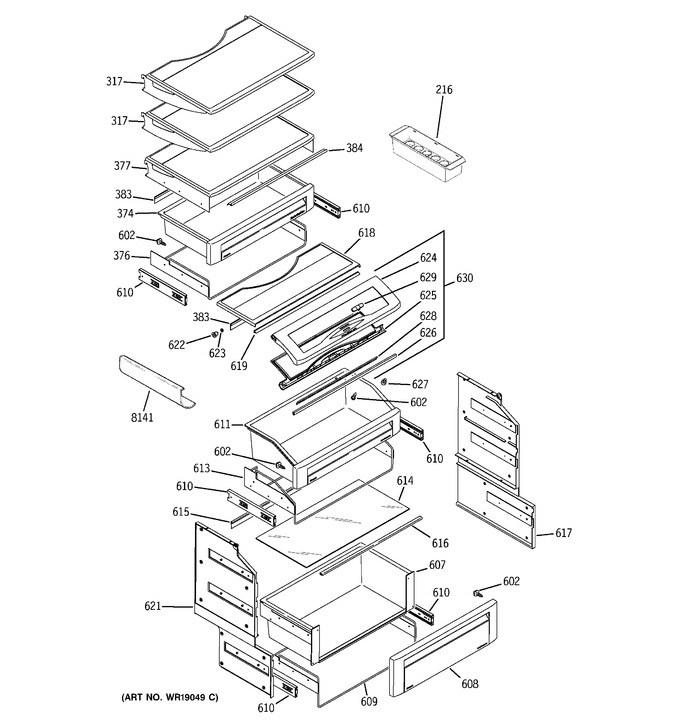

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 216 | WR32X1435 | Bucket Egg |  |
|||
| 317 | WR71X10429 | Encap Shelf Asm | |
|||
| 374 | WR32X10325 | Snack Pan Asm | |
|||
| 376 | WR71X10431 | Snack Pan Wire Support | |
|||
| 377 | WR71X10432 | Snack Pan Shelf Asm | |
|||
| 383 | WR40X10039 | Panrear Seal | |
|||
| 384 | WR40X10040 | Seal Pan Front | |
|||
| 602 | WR01X10310 | 6-20 X 1 Ss Ph Phil | |
|||
| 607 | WR32X10326 | Veg Pan Asm | |
|||
| 608 | WR71X10434 | Veg Pan Front Asm | |
|||
| 609 | WR72X10105 | Veg Pan Wire Support | |
|||
| 610 | WR72X10191 | Slide Asm 10 " | |
|||
| 611 | WR32X10327 | Showcase Pan Asm | |
|||
| 613 | WR71X10435 | Showcase Pan Wire | |
|||
| 614 | WR32X10328 | Veg Pan Glass Shelf | |
|||
| 615 | WR02X11242 | Veg Pan Rear Seal | |
|||
| 616 | WR02X11243 | Veg Pan Shelf Front Seal | |
|||
| 617 | WR72X10101 | Pan Slide Support Rh | |
|||
| 618 | WR71X10436 | Showcase Pan Shelf Asm | |
|||
| 619 | WR71X10437 | Showcase Pan Shelf Front | |
|||
| 621 | WR72X10102 | Pan Slide Support Lh | |
|||
| 622 | WR13X10247 | Bushing Showcase Pivot | |
|||
| 623 | WR01X10046 | Washer Showcase Pivot | |
|||
| 624 | WR32X10330 | Showcase Flip Lid Window | |
|||
| 625 | WR17X11215 | Veg Pan Flip Window | |
|||
| 626 | WR14X10140 | Gasket Lid Showcase | |
|||
| 627 | WR01X10047 | Button Glide | |
|||
| 628 | WR02X11244 | Humidity Slide 42" | |
|||
| 629 | WR02X11218 | Humidity Slider Control | |
|||
| 630 | WR32X10329 | Showcase Flip Lid Asm | |
|||
| 8141 | WR17X4141 | Wine Rack | |
