10 - Case Parts


1 - Freezer Door


2 - Sealed System & Mother Board


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill

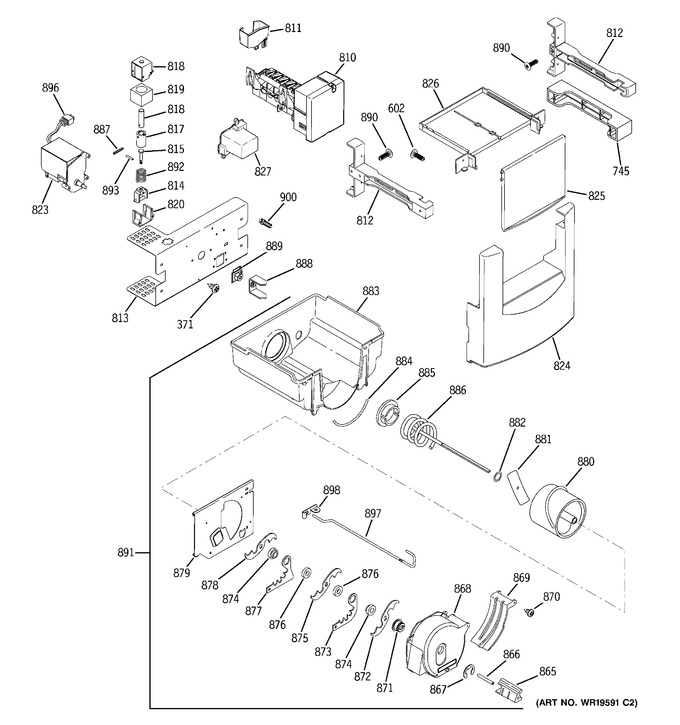

Diagram #	Part Number		Description	Series	Find a Video
371	WR01X10192		Scr 10-18 Hi/lo Hxw 1/2
602	WR01X10310		6-20 X 1 Ss Ph Phil
810	WR30X10012		Icemaker Asm
811	WR29X10021		Cup Fill Im
812	WR72X10103		Bucket Slide
813	WR17X11217		Cover Motor Solenoid
814	WR17X1066		Stirrup
815	WR17X1064		Plunger Solenoid
817	WR17X1065		Collar Solenoid Disp
818	WR62X58		Solenoid Arm Asm
819	WR17X1063		Shroud Solenoid
820	WR2X7309		Saddle Solenoid
823	WR60X10123		Motor Crusher Disp
824	WR17X11218		Ice Bin Frt
825	WR17X11199		Ice Bin Door
826	WR71X10420		Ice Bin Door Track
827	WR02X11767		Boot Auger Motor Int
865	WR2X4140		Blade Rest Disp
866	WR2X4141		Pin Spiral
867	WR1X1367		Retainer Ring E
868	WR17X2061		Housing Crusher Disp
869	WR2X4561		Spring Ice Deflector
870	WZ04X0230		Screw
871	WR1X1585		Nut Auger
872	WR17X1361		Blades Moving Disp
873	WR17X1009		Blade
874	WR2X4139		Spacer
875	WR17X1362		Blades Moving Disp
876	WR2X4138		Spacer
877	WR17X2058		Blade Stationary Disp
878	WR17X1363		Blades Moving Disp
879	WR17X2062		Plate Front Disp
880	WR17X4207		Helix Front Disp
881	WR2X7351		Blade In Disp
882	WR1X1366		Washer
883	WR30X322		Bucket Ice Disp
884	WR2X7905		Bucket Seal Disp
885	WR2X4550		Cup Drive Dispenser
886	WR17X4204		Auger Helix Disp
887	WR2X4259		Pin Spiral
888	WR02X11937		Drive Auger Dispenser
889	WR1X1547		Nut J
890	WD2X295		#10x1 Ph Sms
891	WR17X11410		Bucket & Auger Asm Disp
892	WR2X4258		Spring Solenoid Linkage
893	WR2X4257		Pin Spiral
896	WR23X463		Harness Motor Disp
897	WR17X11411		Wire Actuator Disp
898	WR2X4251		Retainer Actuator Wire
900	WR2X7310		Supp0rt Twist
