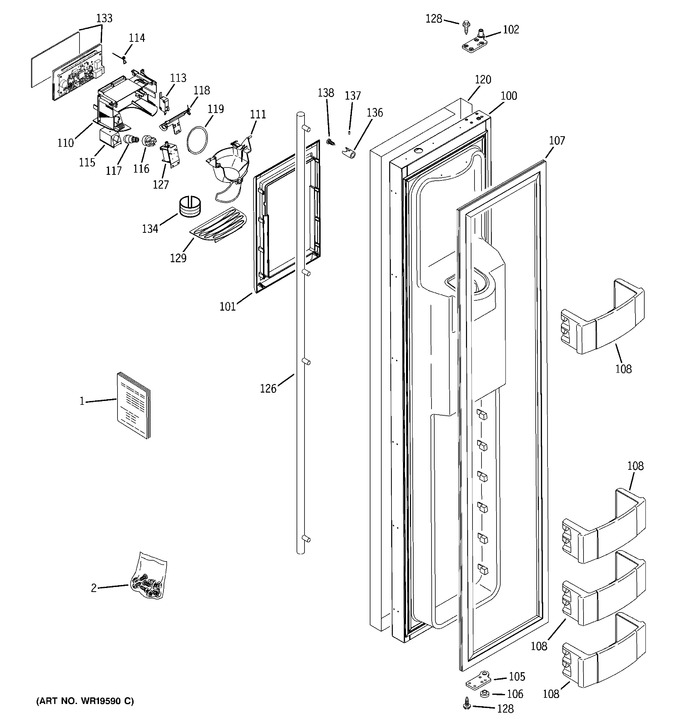

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 31-51559 | Mini Manual | ||||
49-60139 | Custom Options Guide | |||||
49-60315 | Use & Care Manual | |||||
2 | WR01X10304 | Hardware Pack | ||||
100 | WR78X11106 | 36/42 Fz Disp Door Bk | ||||
101 | WR38X10281 | Collar Kit- Black | ||||
102 | WR13X10238 | Top Sxs Fz Door Hinge As | ||||
105 | WR13X10250 | Fz Hinge Door Btm | ||||
106 | WR01X10297 | Fz Bottom Hinge Bushing | ||||
107 | WR24X10143 | 36fz/42fz Door Gasket | ||||
108 | WR71X10426 | Reg Bin Asm | ||||
110 | WR17X10746 | Housing Shield Disp Bk | ||||
111 | WR17X11267 | Funnel Ice Disp | ||||
113 | WR23X10171 | Switch | ||||
114 | WR02X10584 | Spring Funnel | ||||
115 | WR02X10670 | Reflector Light | ||||
116 | WR2X9561 | Lamp Socket | ||||
117 | WR02X10675 | Light Dispenser | ||||
118 | WR17X10706 | Crank Door Recess | ||||
119 | WR17X3093 | Door Recess Asm | ||||
120 | WR12X10530 | 42 Ss Fz Wrap Asm | ||||
126 | WR12X10068 | Handle Tubular Ss | ||||
127 | WR62X10020 | Solenoid Asm | ||||
128 | WR1X1845 | Screw | ||||
129 | WR17X10895 | Grille Recess Bk | ||||
133 | WR55X10157 | Disp Asm- Board / Glass | ||||
134 | WR17X11268 | Extension Funnel Ice Bk | ||||
136 | WR02X10165 | Stand-off Ss | ||||
137 | WR01X10026 | Screw Set #10-32 | ||||
138 | WR01X10057 | Screw #10-32x3/4 Cr Tr H |
