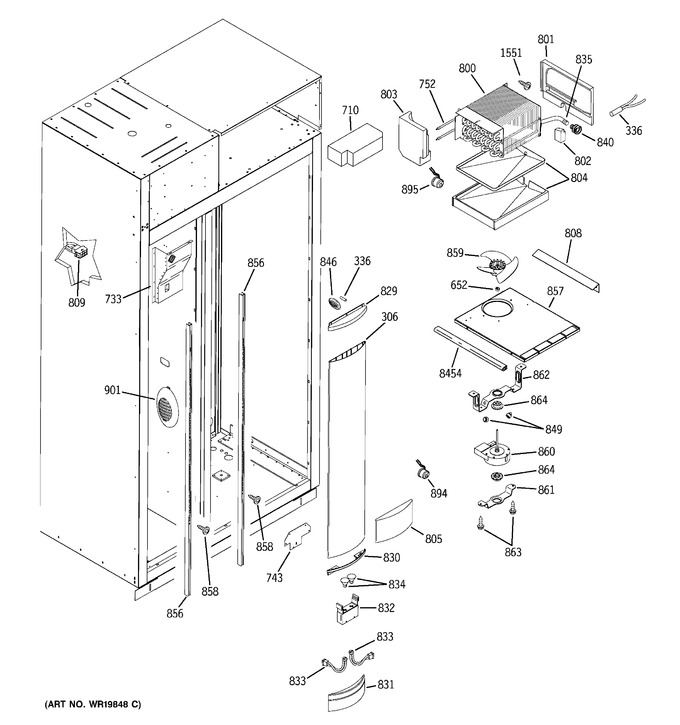

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 306 | WR17X11207 | Light Column Asm |  |
|||
| 336 | WR55X10025 | Sensor Temp Ff | |
|||
| 652 | WR02X10323 | Ring Compression | |
|||
| 733 | WR74X10114 | Rear Duct Fz | |
|||
| 743 | WR02X11223 | Brkt Light Column Mt | |
|||
| 752 | WR51X10065 | Heater Defrost | |
|||
| 800 | WR84X10038 | Evap Asm W/heater | |
|||
| 801 | WR17X11193 | Ff Return Air Baffle | |
|||
| 802 | WR2X9228 | Elut Block | |
|||
| 803 | WR02X11225 | Foam Block | |
|||
| 804 | WR17X11194 | Drain Pan Asm W/htr | |
|||
| 805 | WR02X11451 | Reflective Film Ff | |
|||
| 808 | WR02X11338 | Rain Hat | |
|||
| 809 | WR02X11452 | Amp J10 Connector | |
|||
| 829 | WR17X11200 | Endcap Light Column Fz | |
|||
| 830 | WR17X11201 | Endcap Light Column Btm | |
|||
| 831 | WR17X11202 | Bulb Housing Cover | |
|||
| 832 | WR02X12199 | Bulb Housing | |
|||
| 833 | WR02X11227 | Socket Bulb Fixture | |
|||
| 834 | WR02X11183 | Halogen Bulb Light Colum | |
|||
| 835 | WR17X11969 | Tube Drain Flexible | |
|||
| 840 | WR02X12062 | Flapper & Valve Asm | |
|||
| 846 | WR02X10647 | Grille Sensor | |
|||
| WR02X11228 | Thermistor Grill Kit- Al | |
||||
| 849 | WR02X10540 | Bumper Lid | |
|||
| 856 | WR17X11205 | Fz Shelf Track | |
|||
| 857 | WR17X11219 | Evap Fan Orfice Cover | |
|||
| 858 | WR01X10051 | Screw Shelf Track | |
|||
| 859 | WR60X10050 | Blade Fan Motor | |
|||
| 860 | WR60X10083 | Motor Dc Evap Fan | |
|||
| 861 | WR02X10548 | Bracket Evap Fan Btm | |
|||
| 862 | WR02X10653 | Bracket Orifice Fan | |
|||
| 863 | WR01X10035 | Scr 8-18 Ab Ihw 5/8 S | |
|||
| 864 | WR02X10519 | Grommet Evap Fan | |
|||
| 894 | WR50X10035 | Thermostat Light | |
|||
| 895 | WR50X10036 | Thermodisc Evap | |
|||
| 901 | WR71X10325 | Ff Air Diffuser | |
|||
| 1551 | WR1X5645 | #10 X 1/2 Ph Sms | |
|||
| 8454 | WR38X10190 | Edge Trim 1.1257" | |
