10 - Door


1 - Gas & Burner Parts


2 - Door Latch


3 - Door Latch


4 - Door Latch


5 - Door Latch


6 - Door Latch


7 - Door Latch


8 - Door Latch


9 - Door Latch

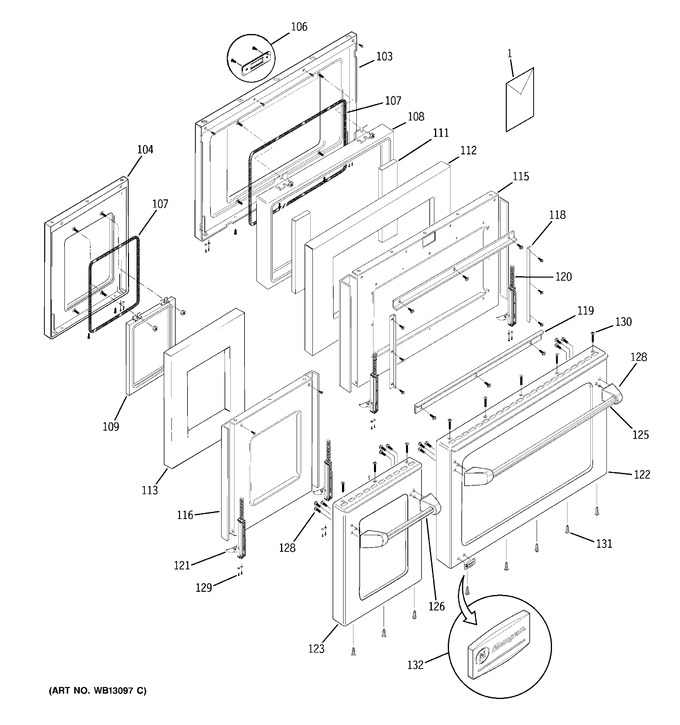

Diagram #	Part Number		Description	Series	Find a Video
1	WB49X10133		Lp/nat Conversion Kit
	WB49X10130		High Altitude Conversion
	WB49X10132		Nat/lp Conversion Kit
103	WB55X10718		Door Liner 27"
104	WB55X10719		Door Liner 12"
106	WB02X11055		Latch Plate W/ Screws
107	WB2X8597		Window Gasket-12"/27"
108	WB36X5801		Window Pack-27
109	WB36X5804		Window Pack 12"
111	WB02X11056		Insulation Cut
112	WB02X11057		Insulation 27"
113	WB02X11058		Insulation 12"
115	WB55X10720		Insulation Retainer 27"
116	WB55X10721		Insulation Retainer 12"
118	WB02X11059		Compression Brkt Side
119	WB02X11060		Compression Brkt T/bot
120	WB10X10056		Hinge Door 27"
121	WB10X10057		Hinge Door 12"
122	WB56X10505		Door Skin Asm W/glass27"
123	WB56X10506		Door Skin Asm W/glass12"
125	WB15X10148		Door Handle, Tub 27"
126	WB15X10149		Door Handle, Tub 12"
128	WB07X10790		End Cap, Handle, W/screw
129	WB01X10259		Eyebrow Rt
130	WB01X10035		Scr 8-32x1" Tx Fl Hd
131	WB01X10141		Screw, Sms, 10-24 X 1/2
132	WB02X11061		Logo Ge, W/ Clips
