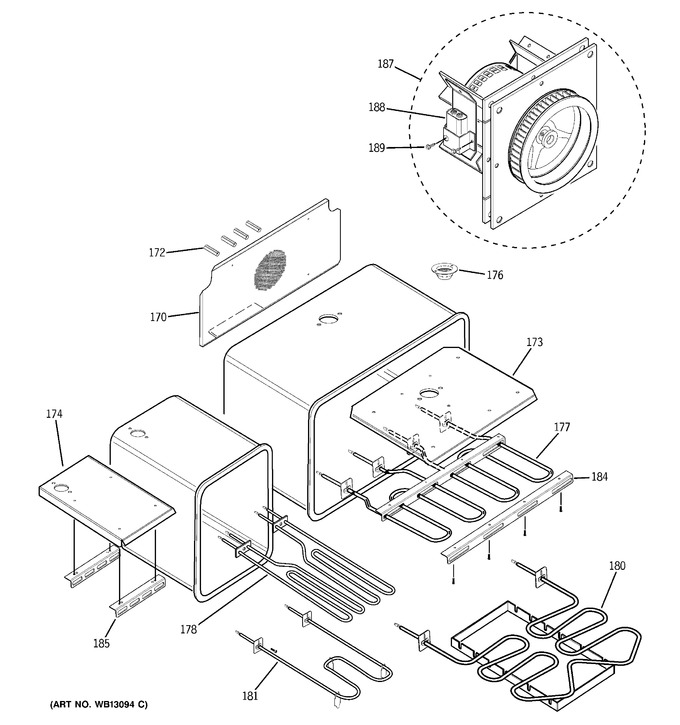

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
170 | WB02X11069 | Baffle Convection Fan | ||||
172 | WB02X11066 | Convection Baffle Spacer | ||||
173 | WB44X10033 | Reflector Broil 27" | ||||
174 | WB44X10034 | Reflector Broil 12" | ||||
176 | WB21X10032 | Catalyst | ||||
177 | WB44X10035 | Broil Element | ||||
178 | WB44X10036 | Broil Element 1,800 W | ||||
180 | WB44X10039 | Bake Element W/bracket | ||||
181 | WB44X10038 | Bake Element | ||||
184 | WB02X11067 | Element Bracket F/r | ||||
185 | WB02X11068 | Element Bracket 12" F/r | ||||
187 | WB26X10152 | Convection Motor Assy | ||||
188 | WB27X10782 | Capacitor | ||||
189 | WB01X10150 | Screw, 10-24 X 1/2 |
