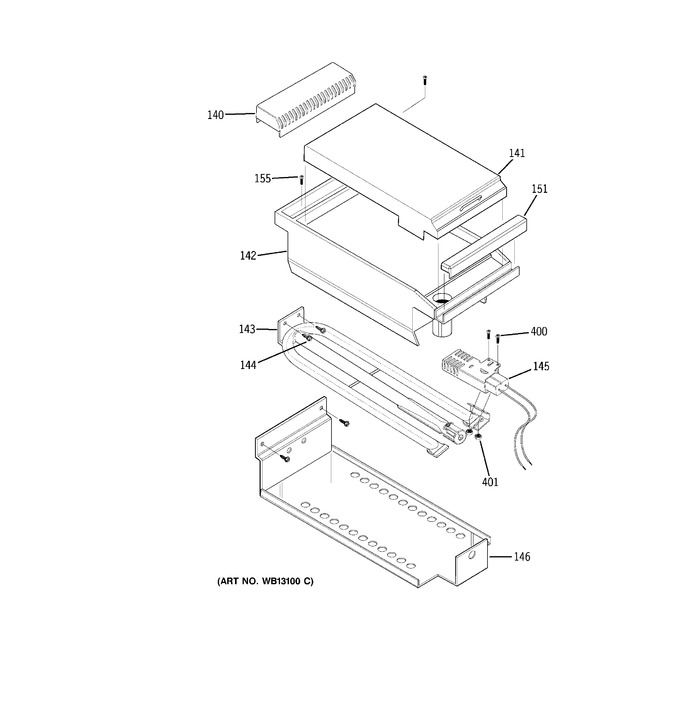

Diagram #	Part Number		Description	Series	Find a Video
140	WB07X10791		Cover Rear, Griddle
141	WB07X10809		Cover , Griddle
142	WB32X10050		Griddle Assy
143	WB28X10063		U-burner W / Brkt
144	WB02X11062		Screw, U-burner, Mount
145	WB2X8605		Igniter, Brkt & Hdwe
146	WB49X10126		Griddle Baffle
151	WB7X7395		Griddle Front Trim
155	WB01X10056		Venturi Bolt
400	WB01X10260		Bolt,igniter
401	WB01X10057		Venturi Nut
