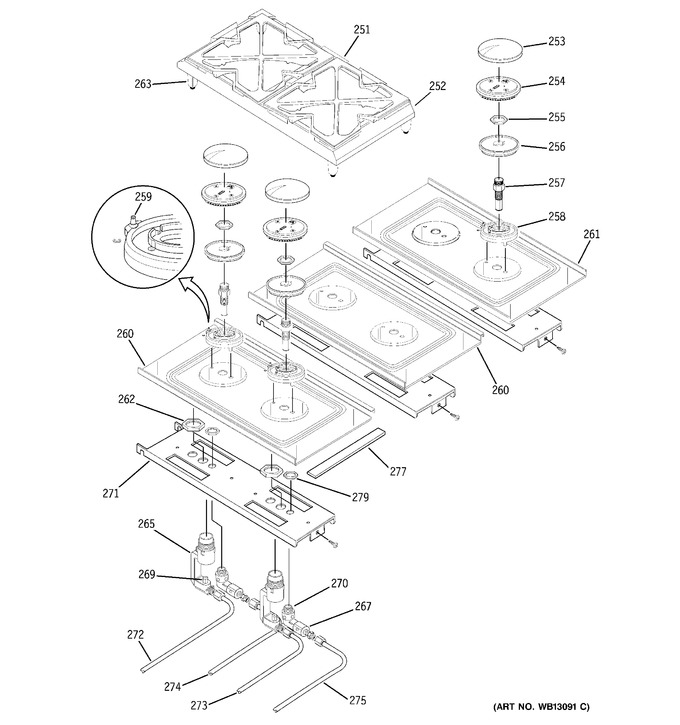

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 251 | WB31X10004 | Grate, Wok Insert |  |
|||
| 252 | WB02X11074 | Grate Support | |
|||
| 253 | WB13X10014 | Burner Cap (porcelain) | |
|||
| 254 | WB32X10047 | D Port Ring | |
|||
| 255 | WB01X10321 | Nut Chamfer | |
|||
| 256 | WB22X10012 | D Simmer Ring | |
|||
| 257 | WB38X10080 | Venturi, Chamfer W/nut | |
|||
| 258 | WB16X10020 | Burner Base Assy | |
|||
| 259 | WB02X10780 | Ignitor | |
|||
| 260 | WB32X10054 | Burner Pan R/s Flange | |
|||
| 261 | WB32X10055 | Burner Pan L/s Flange | |
|||
| 262 | WB01X10139 | Nut, Jet Holder, Main | |
|||
| 263 | WB02X11095 | Feet Kit | |
|||
| 265 | WB16X10008 | Jet Holder Maind 15k Nat | |
|||
| 267 | WB16X10009 | Jet Holder, Simmer (nat) | |
|||
| 269 | WB21X10112 | Orifice Main (nat) | |
|||
| 270 | WB21X10113 | Orifice Simmer (nat) | |
|||
| 271 | WB02X11077 | Bracket, Burner Hanger | |
|||
| 272 | WB28X10064 | Tubing, Main Rear | |
|||
| 273 | WB28X10065 | Tubing, Main Front | |
|||
| 274 | WB28X10066 | Tubing, Simmer Rear | |
|||
| 275 | WB28X10067 | Tubing, Simmer Front | |
|||
| 277 | WB04X10030 | Gasket, Burner Pan | |
|||
| 279 | WB01X10140 | Nut, Jet Holder, Sim | |
