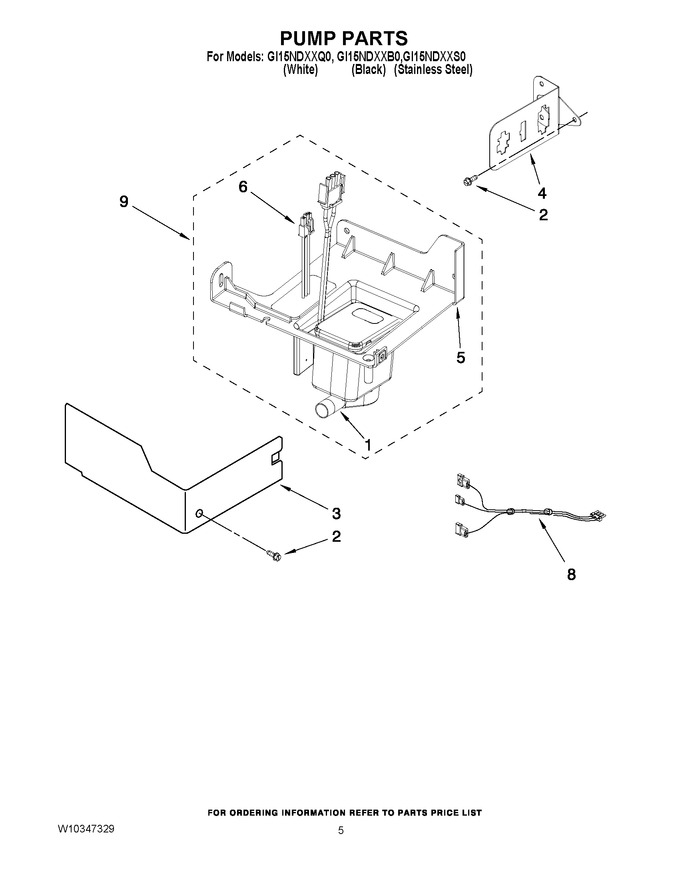

Diagram #	Part Number		Description	Series	Find a Video
1	2313628		Pump-recirculating
2	WP3400884		Screw 8-18 X 5/8
3	2185677		Cover, Pump
4	2313844		Bracket, Connector Assembly
5	W11204894		Bracket-pump   (Replaces:2313627)
6	WPW10548509		Sensor-water Level   (Replaces:2313643)
8	WP2310092		Wiring Harness Main To Pump
9	2313702		Pump Assembly
