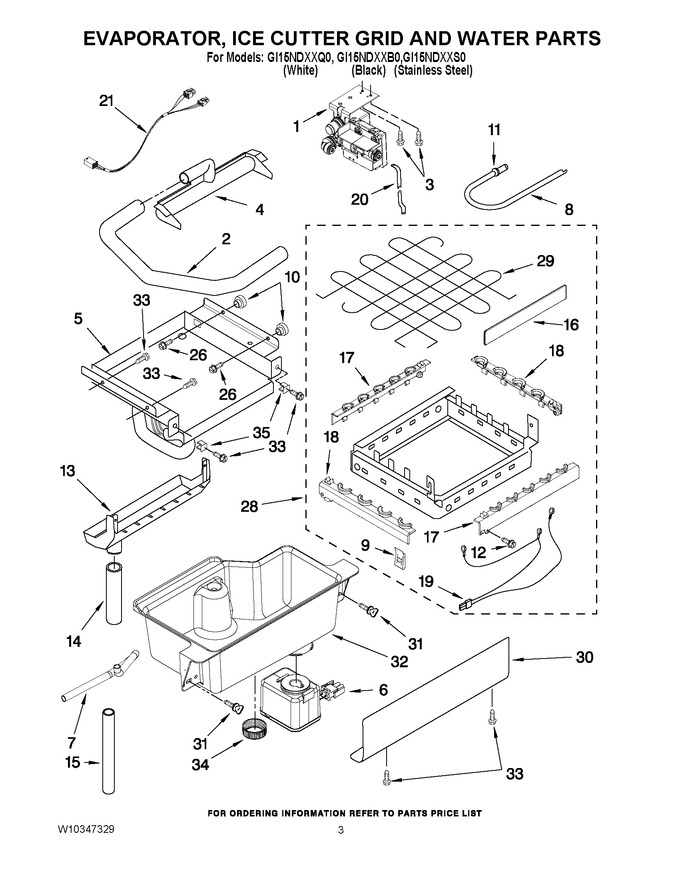

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10585391 | Valve, Complete Water (Replaces:W10163596) |  |
|||
| 2 | W10863947 | Tube, Plastic (Replaces:2217286) | |
|||
| 3 | WP488163 | Screw (Replaces:488208) | |
|||
| 4 | W10863947 | Dispenser, Water (Replaces:2185523) | |
|||
| 5 | WPW10218037 | Evaporator | |
|||
| 6 | W11566407 | Pump, Drain (Replaces:2313705) | |
|||
| 7 | WP2313851 | Tube,reservoir Pump | |
|||
| 8 | WPW10418868 | Tube, Water Fill (Replaces:W10122016) | |
|||
| 9 | 488660 | Nut, Speed | |
|||
| 10 | 836667 | Spacer | |
|||
| 11 | WP2208539 | Fastener, Pushnut | |
|||
| 12 | WP489443 | Screw | |
|||
| 13 | WP2185625 | Reservoir, Water Slide | |
|||
| 14 | WP2185626 | Tube | |
|||
| 15 | WP2313890 | Hose, Overflow | |
|||
| 16 | 2313604 | Guide, Ice Grid | |
|||
| 17 | 8201790 | Rear (Replaces:W10136175) | |
|||
| 18 | 8201791 | Bracket, Side (left And Right) (Replaces:2313602) | |
|||
| 19 | 2185681 | Harness, Grid | |
|||
| 20 | WPW10217922 | Tube | |
|||
| 21 | WP2310169 | Wire Assembly Valve | |
|||
| 26 | WP3400886 | Screw 8-18 X 1 1/4 | |
|||
| 28 | WP2313637 | Grid Assembly (complete) | |
|||
| 29 | 4387020 | Wire, Grid Cutter (Replaces:2174754) | |
|||
| 30 | 2185570 | Cover, Grid | |
|||
| 31 | 681534 | Thumbscrew (Replaces:8281228) | |
|||
| 32 | WP2324334 | Reservoir, Water | |
|||
| 33 | WP3400884 | Screw 8-18 X 5/8 | |
|||
| 34 | WP2185696 | Cap, Drain | |
|||
| 35 | WP3400909 | Nut, Push-in | |
