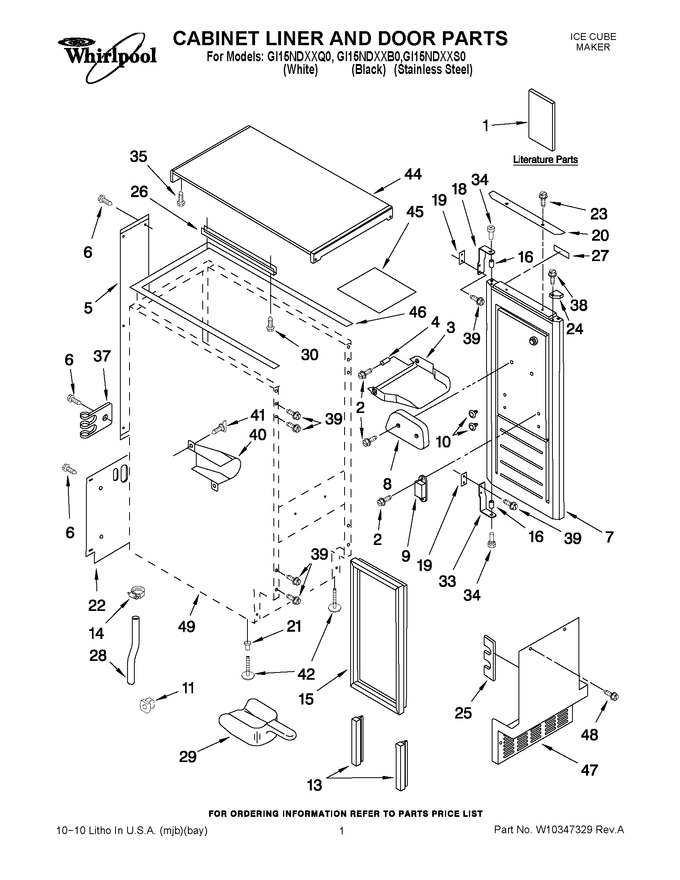

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10206421 | Use & Care Guide |  |
|||
| W10206442 | Service & Wiring Sheet | |
||||
| 2 | WP3400886 | Screw 8-18 X 1 1/4 | |
|||
| 3 | WP2185742 | Bin, Door | |
|||
| 4 | 2185678 | Spacer | |
|||
| 5 | 2217394 | Cover, Wiring | |
|||
| 6 | WP489442 | Screw | |
|||
| 7 | W10320413Q | Door (stainless Steel) (Replaces:W10320413) | |
|||
| W10320412Q | Door (black) (Replaces:W10320412) | |
||||
| W10320410Q | Door (white) (Replaces:W10320410) | |
||||
| 8 | 2185695 | Cam, Door | |
|||
| 9 | W11223751 | Assembly, Magnetic Catch (Replaces:2217393) | |
|||
| 10 | WP2151652 | Hole Plug, Handle | |
|||
| 11 | W10136999 | Nut, Push-in | |
|||
| 13 | 2217367 | Gasket, Bottom | |
|||
| 14 | WP489503 | Clamp | |
|||
| 15 | WP2217294 | Gasket, Door | |
|||
| 16 | 2185640 | Sleeve, Hinge | |
|||
| 18 | 2185710 | Hinge, Top | |
|||
| 19 | 2185709 | Shim, Hinge | |
|||
| 20 | WP2208493W | Handle, Door (white) | |
|||
| 2208493AP | Handle, Door (apollo Grey) | |
||||
| WP2208493B | Handle, Door (black) | |
||||
| 21 | 3400240 | Nut, Leg Leveler | |
|||
| 22 | WPW10136199 | Assembly, Unit Cover | |
|||
| 23 | 8281188 | Screw (white) | |
|||
| WP8281186 | Screw (black) | |
||||
| 8534081 | Screw (stainless) | |
||||
| 24 | 2185655W | Filler, Endcap Left Side (white) | |
|||
| 2185655B | Filler, Endcap Left Side (black) | |
||||
| 2185655AP | Filler, Endcap Left Side (apollo Grey ) | |
||||
| 2185656W | Filler, Endcap Right Side (white) | |
||||
| 2185656B | Filler, Endcap Right Side (black) | |
||||
| 2185656AP | Filler, Endcap Right Side (apollo Grey) | |
||||
| 25 | 2185756 | Pad, Foam | |
|||
| 26 | 2185691 | Channel, Wiring | |
|||
| 27 | W10175320 | Badge (whpl.gold) | |
|||
| 28 | WP2185989 | Tube, Drain | |
|||
| 29 | W11420408 | Scoop (Replaces:585158) | |
|||
| 30 | WP3400884 | Screw 8-18 X 5/8 | |
|||
| 33 | 2185711 | Hinge, Bottom | |
|||
| 34 | 2185712 | Pin, Hinge | |
|||
| 35 | WP250830 | Screw, Ground 8-32 X 1/2 (Replaces:489048) | |
|||
| 37 | WP488366 | Clip, Water Tube (Replaces:2208136) | |
|||
| 38 | 348689 | Screw 8-18 X 3/4 | |
|||
| 39 | WP489464 | Screw (Replaces:8281265) | |
|||
| 40 | 2185927 | Holder, Scoop | |
|||
| 41 | 681534 | Thumbscrew (Replaces:8281228) | |
|||
| 42 | 8193716 | Leg, Leveler (4) (Replaces:3374849) | |
|||
| 44 | W10320111 | Top (black) | |
|||
| W10320110 | Top (white) | |
||||
| 45 | 2185690 | Shield, Electrical | |
|||
| 46 | 2217293 | Gasket, Top Panel | |
|||
| 47 | WP2185571W | Grill, Front (white) | |
|||
| WP2185571B | Grill, Front (black) | |
||||
| 48 | WP489474 | Screw 8-18 X 1 | |
|||
| 49 | N/P | Cabinet & Liner (not Serviced) | |
