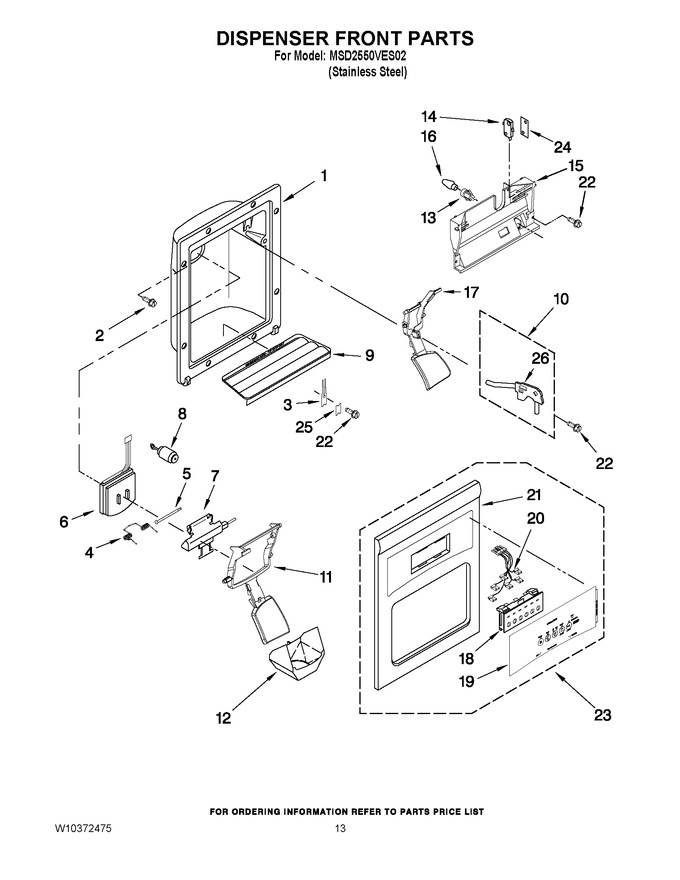

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |  |
|||
| 2 | WP3196557 | Screw (Replaces:3196537) | |
|||
| 3 | WP2194719 | Retainer, Levers | |
|||
| 4 | WPW10224328 | Spring, Torsion (Replaces:2304772) | |
|||
| 5 | WP2196195 | Pin | |
|||
| 6 | WP2180353 | Door, Ice | |
|||
| 7 | W10823377 | Door Mechanism Assembly (Replaces:2304355) | |
|||
| 8 | W10823377 | Mechanism Delay (Replaces:2205686) | |
|||
| 9 | WP2206670B | Grille, Overflow | |
|||
| 10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces:W10133007) | |
|||
| 11 | 2203562B | Lever, Ice Dispenser | |
|||
| 12 | WP2180224 | Guide, Ice | |
|||
| 13 | 2180200 | Lamp Holder | |
|||
| 14 | WP2162361 | Switch | |
|||
| 15 | WP2180226 | Bracket, Control (Replaces:W10282667) | |
|||
| 16 | WP22002263 | Bulb, Light (Replaces:3406124) | |
|||
| 17 | 2203561B | Lever, Water Dispenser | |
|||
| 18 | 2198621 | Switch Assembly | |
|||
| 19 | N/P | Overlay, Front Cover (not Available Order No.23) | |
|||
| 20 | 2187406 | Wire Assembly | |
|||
| 21 | N/P | Front Cover, Housing (not Available, Order No.23) | |
|||
| 22 | WP3400906 | Screw (Replaces:489000) | |
|||
| 23 | WPW10175698 | Front Cover Assembly (includes Items 18, 19, 20, & 21) | |
|||
| 24 | WP625834 | Spacer, Switch (2) | |
|||
| 25 | WP2195051 | Strain Relief | |
|||
| 26 | WP2304673 | Bracket, Dispenser | |
