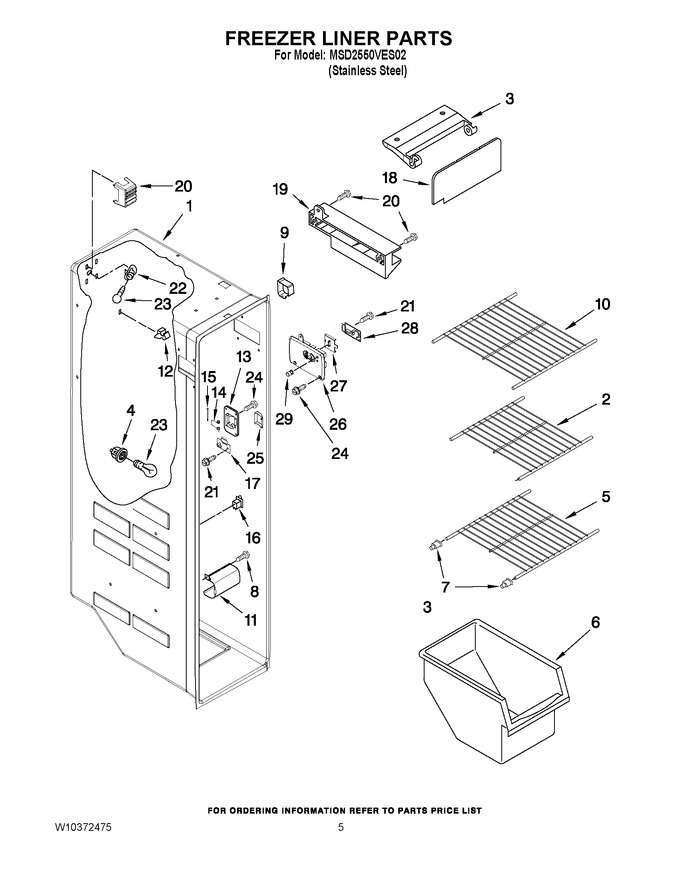

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |  |
|||
| 2 | WPW10318961 | Shelf | |
|||
| 3 | WP2198641 | Bracket, Ice Maker Cover | |
|||
| 4 | WPW10119935 | Socket, Light (Replaces:2155597) | |
|||
| 5 | WPW10318948 | Shelf | |
|||
| 6 | WPW10144409 | Freezer Bin (Replaces:2309757) | |
|||
| 7 | WPW10130299 | Cup, Shelf | |
|||
| 8 | W10142289 | Screw (Replaces:3400893) | |
|||
| 9 | 2303234 | Shield, Wiring | |
|||
| 10 | WPW10318947 | Shelf | |
|||
| 11 | W11298978 | Light Lens (Replaces:2212340) | |
|||
| 12 | 2215823 | Clip, Air Duct (2) (Replaces:842534) | |
|||
| 13 | WP2198587 | Cover, Emitter | |
|||
| 14 | WP2198635 | Spring | |
|||
| 15 | WP2198634 | Pin | |
|||
| 16 | W11457217 | Switch, Rocker Arm (Replaces:1115373) | |
|||
| 17 | W11629974 | P.c. Boardemitter (Replaces:W10193840) | |
|||
| 18 | WP2255720 | Cover, Ice Maker | |
|||
| 19 | 2212321 | Slide, Ice Maker Mounting | |
|||
| 20 | WP2302848 | Light Shield (Replaces:2198589) | |
|||
| 21 | 2006254 | Screw (Replaces:489214) | |
|||
| 22 | 4387478 | Light Socket (Replaces:2162085) | |
|||
| 23 | 8009 | Light Bulb (Replaces:527949) | |
|||
| 24 | 8281185 | Screw | |
|||
| 25 | WP2198633 | Flipper | |
|||
| 26 | W10173569 | Cover, Receiver | |
|||
| 27 | 2315398 | Slide, Ice Maker Shut Off | |
|||
| 28 | W11629974 | P.c. Board, Receiver (Replaces:W10290817) | |
|||
| 29 | WP2198643 | Lens | |
