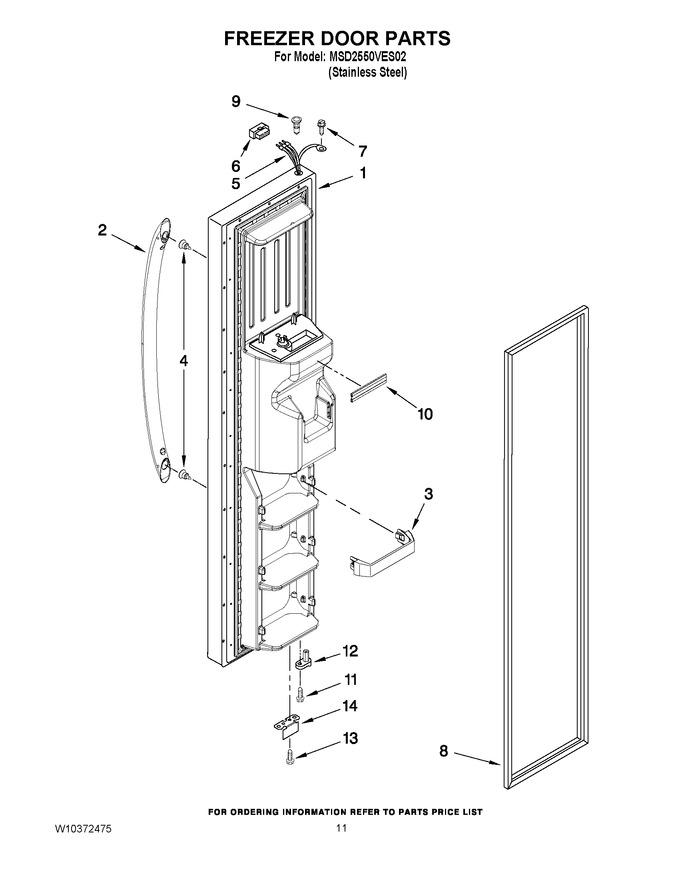

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Find a Video
1	LW10321301		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel)   (Replaces:W10321301)
2	W10136871		Handle   (Replaces:67006391)
3	WP2309718		Door Trim (3)
4	WPW10170540		Stud, Handle
5	2198619		Dispenser Harness
6	WP2154473		Connector
7	WP489128		Screw   (Replaces:488500)
8	2159082		Door Gasket, Magnetic   (Replaces:2309533)
9	WP2182181		Thimble-top
10	WPW10307490		Trim, Door Shelf   (Replaces:W10307494)
11	WP3400012		Screw
12	WP2182179		Door Closer, Upper Cam
13	WP489483		Screw   (Replaces:489420)
14	W10185567		Bracket, Door Stop
