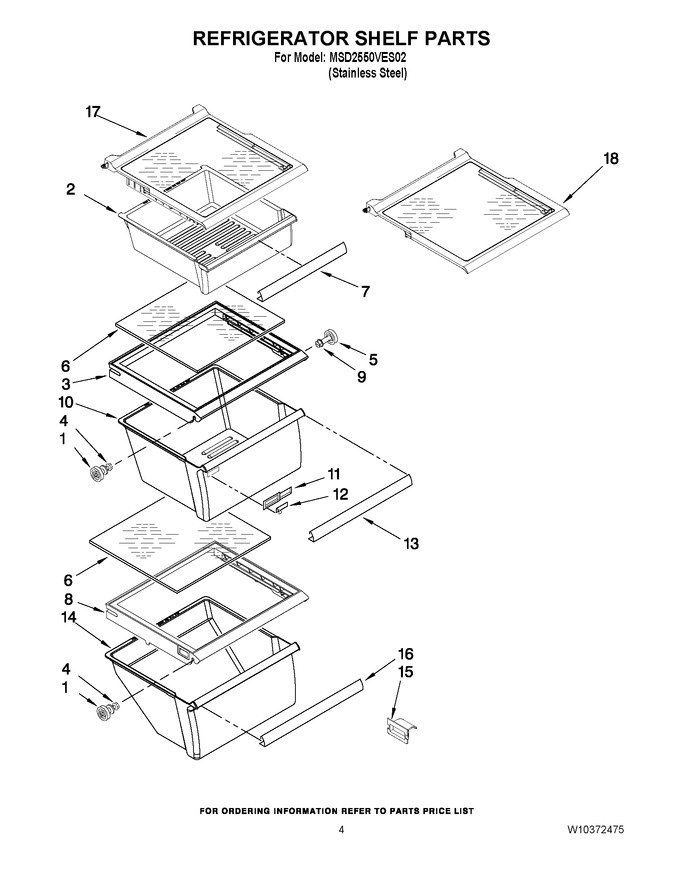

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11223328 | Stud Assembly (Replaces:W10173126) |  |
|||
| 2 | WP2309517 | Snack Bin (Replaces:2309518) | |
|||
| 3 | W10508993 | Cover, Crisper (Replaces:2209698) | |
|||
| 4 | WP3-24004-109 | Screw (Replaces:W10191954) | |
|||
| 5 | WP2196483 | Stud Assembly (Replaces:W10173127) | |
|||
| 6 | W10864399 | Glass, Cover (Replaces:2179259) | |
|||
| 7 | WP2179243 | Trim, Handle (Replaces:2309519) | |
|||
| 8 | W10508993 | Cover, Meat Pan (Replaces:2311726) | |
|||
| 9 | WPW10191952 | Screw | |
|||
| 10 | WP2188656 | Crisper Pan (Replaces:2188652) | |
|||
| 11 | WP2179343 | Body, Humidity Control | |
|||
| 12 | WP2179342 | Slide, Humidity (control) | |
|||
| 13 | WP2179234 | Trim, Handle (Replaces:2255593) | |
|||
| 14 | WP2188664 | Meat Pan (Replaces:2188654) | |
|||
| 15 | 2179350 | Deflector | |
|||
| 16 | WP2179234 | Trim, Handle (Replaces:2255592) | |
|||
| 17 | WPW10276341 | Shelf, Snack Bin | |
|||
| 18 | WPW10276348 | Shelf Assembly, Spillguard (2) | |
