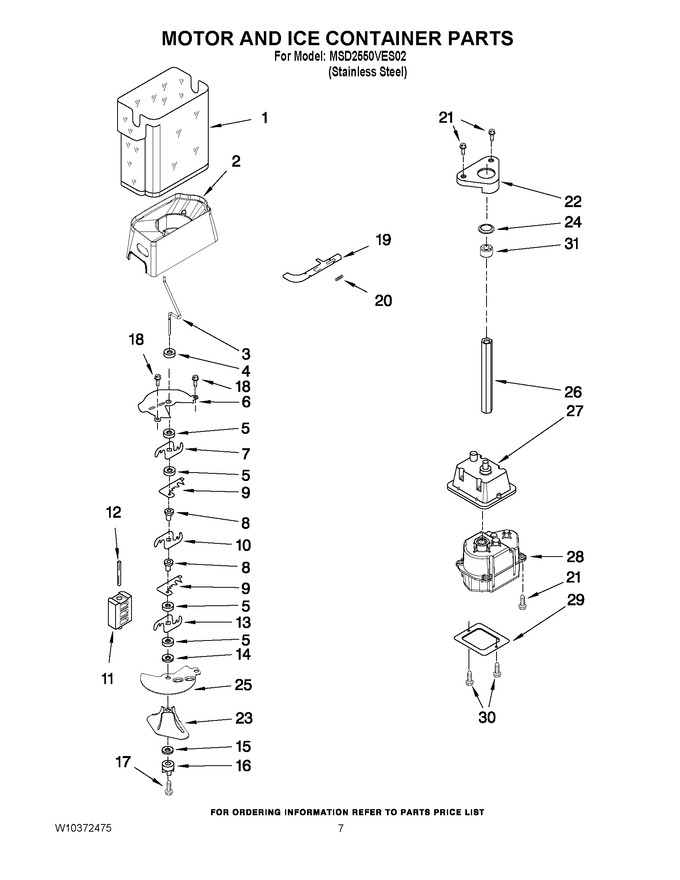

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WP2198573 | Ice Bin | ||||
2 | WPW10130497 | Crusher Bin (Replaces:W10170127) | ||||
3 | WP2317240 | Auger | ||||
4 | W10856867 | Washer (Replaces:2258220) | ||||
5 | WP1119007 | Spacer, Flat (4) | ||||
6 | 2317248 | Cover, Crusher | ||||
7 | W10278731 | Blade, Rotary A | ||||
8 | WP1119005 | Spacer, Step (2) | ||||
9 | 2257020 | Blade, Fixed | ||||
10 | W10278732 | Blade, Rotary B | ||||
11 | 2317239 | Block, Blade | ||||
12 | 489229 | Roll Pin | ||||
13 | W10278733 | Blade, Rotary C | ||||
14 | WP489235 | Washer, Plain | ||||
15 | WP2198661 | Washer, Coupling | ||||
16 | W11629923 | Coupling (Replaces:2188918) | ||||
17 | WP8281164 | Screw | ||||
18 | WP3400065 | Screw | ||||
19 | 2317277 | Latch, Bin | ||||
20 | WP2198608 | Spring, Latch | ||||
21 | WP8281163 | Screw | ||||
22 | WP2188919 | Holder | ||||
23 | 2317243 | Wiper | ||||
24 | WP2198628 | Seal | ||||
25 | 2317250 | Divider Chamber | ||||
26 | WP2188917 | Drive Shaft (Replaces:2188916) | ||||
27 | WP2256154 | Enclosure, Motor | ||||
28 | W10822635 | Dispenser, Motor (Replaces:2315544) | ||||
29 | 2222862 | Cover (Replaces:2212305) | ||||
30 | WP489478 | Screw | ||||
31 | WP2315559 | Sleeve. Coupling | ||||
100 | WPW10204467 | Ice Container (complete) |
