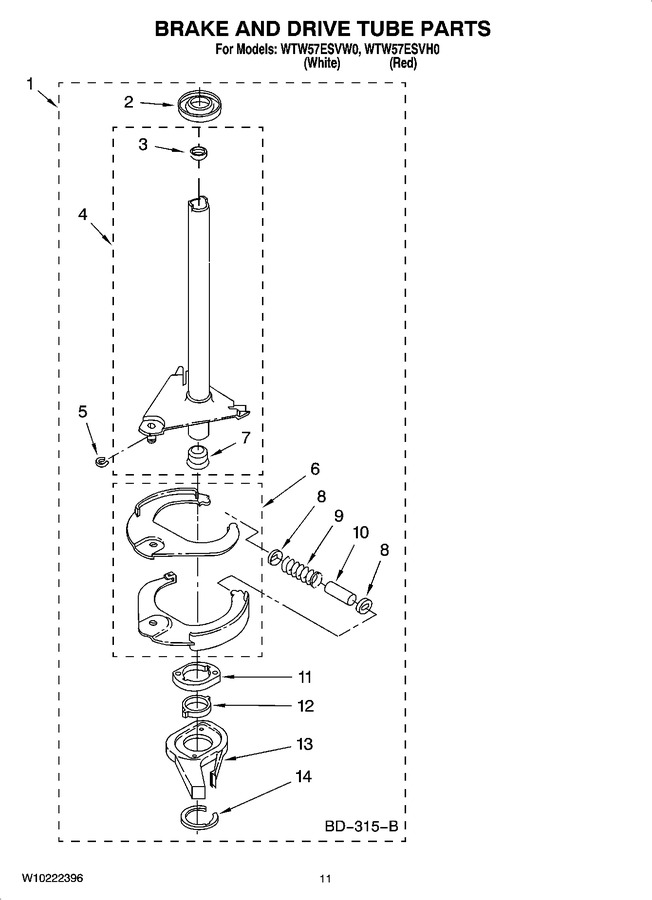

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10820043 | Brake And Drive Tube (complete) (Replaces:388952) | ||||
2 | WP62658 | Ring, Thrust | ||||
3 | WP356427 | Seal, Drive Tube | ||||
4 | WP64208 | Tube, Basket Drive (includes Illus. 3, 4, 5, & 9) (Replaces:64027) | ||||
5 | W10083190 | Ring, Retaining (Replaces:64035) | ||||
6 | 285438 | Shoe, Brake (2) (Replaces:64232) | ||||
7 | WP8546462 | ``t`` Bearing, Spin Tube (Replaces:62703) | ||||
8 | 285658 | Cap, Brake Spring (2) (Replaces:3353956) | ||||
9 | 387806 | Spring, Brake | ||||
10 | 285658 | Sleeve, Brake Spring (Replaces:3355360) | ||||
11 | WP8546461 | Cam, Brake Release (Replaces:661516) | ||||
12 | WP63022 | Sleeve, Cam | ||||
13 | 285790 | Driver, Brake Cam (Replaces:64194) | ||||
14 | W11033823 | Ring, Retaining (Replaces:90368) | ||||
285208 | Lubricant (use Only In Brake Shoe Assembly On Roller & Pin |
