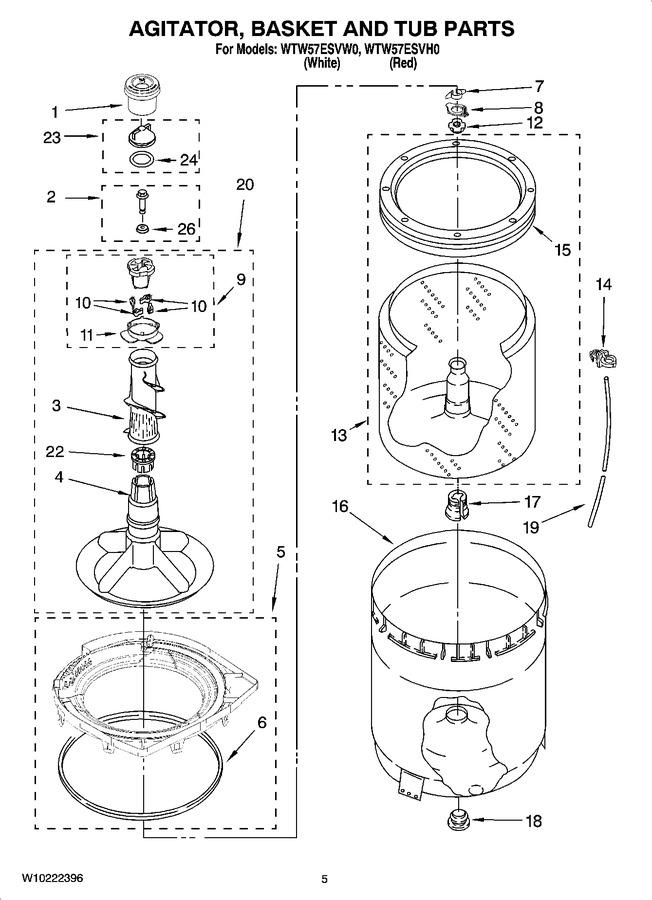

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 8575076A | Dispenser (Replaces:8575076) | ||||
2 | WP358237 | Screw & Washer (5-16-24 X 1) | ||||
3 | WP3363003 | Clothes Mover | ||||
4 | WP3951632 | Agitator | ||||
5 | WPW10167984 | Tub Ring & Gasket | ||||
6 | WP3976308 | Seal, Tub Ring (Replaces:3359585) | ||||
7 | WP3354845 | Clip, Agitator | ||||
8 | WP8543666 | Washer, Agitator | ||||
9 | 285809 | Cam Driven (Replaces:3951682) | ||||
10 | 80040 | Dog, Agitator Clutch (4) (Replaces:3366877) | ||||
11 | WP3952374 | Bearing, Driven Cam | ||||
12 | WP21366 | Nut, Spanner | ||||
13 | W10389328 | Basket & Balance Ring (Replaces:8526016) | ||||
14 | 2219077 | Clip, Pressure Switch Hose | ||||
15 | WP387240 | Balance Ring | ||||
16 | 63849 | Tub | ||||
17 | WP389140 | Block, Basket Drive | ||||
18 | W10814296 | Gasket, Center Post (Replaces:383727) | ||||
19 | WP353244 | Hose, Pressure Switch (Replaces:W10211144) | ||||
20 | WP3951744 | Agitator (complete) | ||||
22 | WP3951608 | Spacer, Thrust | ||||
23 | WPW10074580 | Cap, Barrier (Replaces:3354733) | ||||
24 | WPW10072840 | Seal, Inner Cap | ||||
26 | WP3949550 | Washer |
