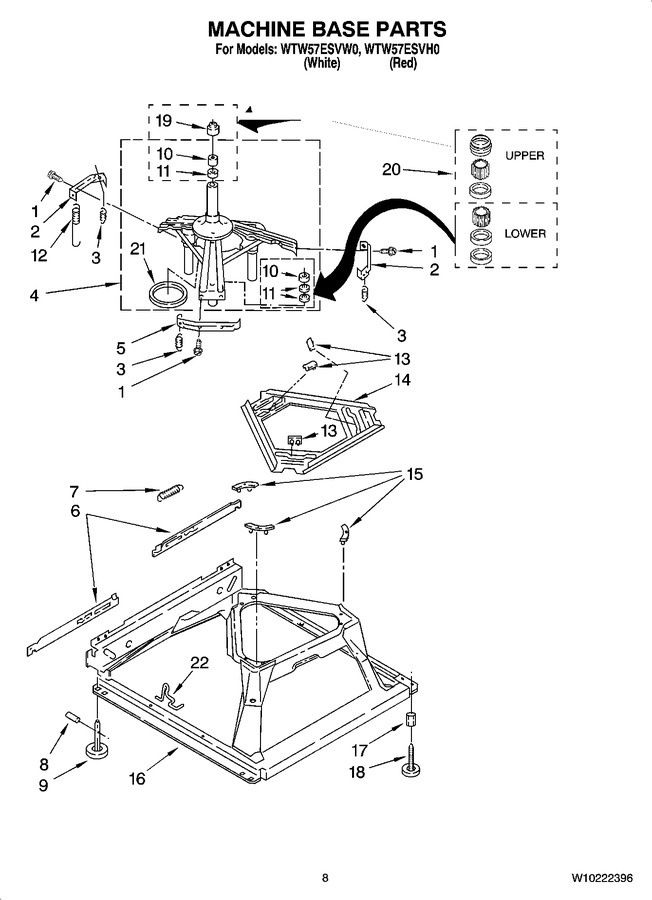

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10846509 | Screw, Bracket Mounting (10-32 X 5/8) (Replaces:3400076) | ||||
2 | WP64067 | Bracket, Spring Outer (2) | ||||
3 | WP63907 | Spring Suspension,(3) | ||||
4 | 280184 | Support & Brake, Tub (Replaces:8575214) | ||||
5 | WP64065 | Bracket, Spring Outer (l.f.) | ||||
6 | WP63466 | Link, Leveling Mechanism (2) | ||||
7 | 8316845 | Spring, Leveling Mechanism (Replaces:62597) | ||||
8 | WP62837 | Pin, Knurled | ||||
9 | 285244 | Foot, Rear (2) (Replaces:62596) | ||||
10 | WP8546455 | Bearing, Centerpost (2) | ||||
11 | W11095997 | Seal, Centerpost (3) (Replaces:357409) | ||||
12 | WPW10250667 | Spring, Counterweight (Replaces:388492) | ||||
13 | 285219 | Pad, Plate (Replaces:62568) | ||||
14 | WP3946509 | Plate, Suspension (includes Item 13) | ||||
15 | 285744 | Pad, Base (Replaces:3363660) | ||||
16 | 285771 | Base Assembly (includes Items 6, 7, 8, 9, 13, 14, 15 & 22) (Replaces:3946512) | ||||
17 | WP3359452 | Nut, Lock (2) (3/8-16) | ||||
18 | WPW10001130 | Foot, Front (2) | ||||
19 | WP8577376 | Seal, Centerpost | ||||
20 | 285203 | Centerpost Bearing Kit (includes Items10, 11 & 19) | ||||
21 | WP63134 | Ring, Sound Deadening | ||||
22 | WPW10145155 | Retainer, Suspension Spring |
