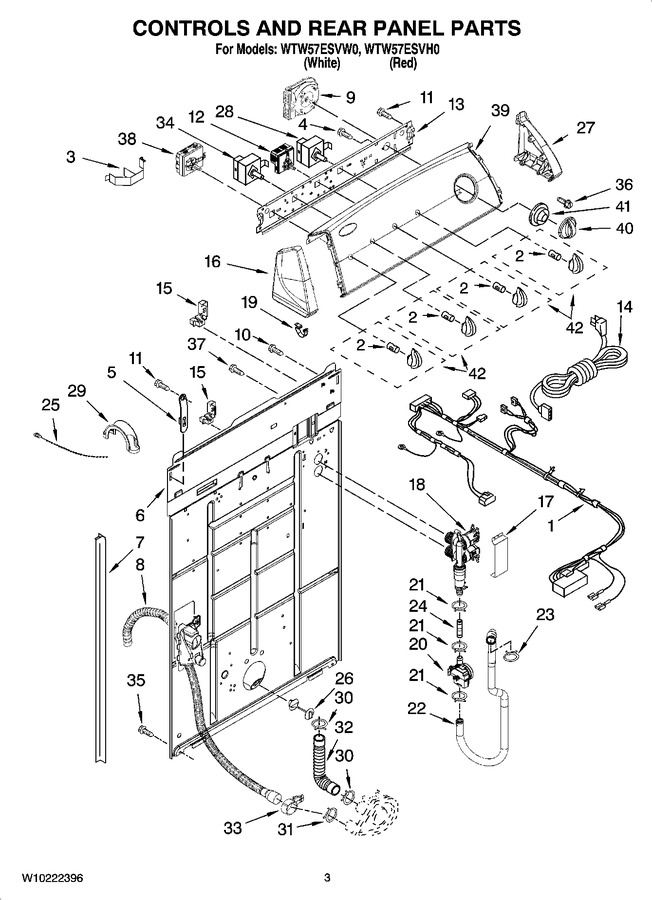

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10180973 | Harness, Wiring (for Detail See Pages 9 & 10) |  |
|||
| 2 | WP8536939 | Clip, Knob | |
|||
| 3 | WP8055003 | Clip, Harness & Pressure Hose | |
|||
| 4 | 3400073 | Screw, Ground | |
|||
| 5 | WP8568314 | Strap, Console (2) | |
|||
| 6 | W10194451 | Panel, Rear | |
|||
| 7 | WP62747 | Pad, Rear Panel | |
|||
| 8 | WPW10189267 | Drain Hose Assembly (includes Item 33) | |
|||
| 9 | WPW10177827 | Timer, Control (60 Hz.) (motor Not A Service Part) | |
|||
| 10 | WP3351614 | Screw, Ground | |
|||
| 11 | WP90767 | Screw, 8-18 X 3/8 | |
|||
| 12 | WPW10292584 | Switch, Auto Load Sensing (Replaces:W10177795) | |
|||
| 13 | 8566003 | Bracket, Control | |
|||
| 14 | W10820044 | Cord, Power (includes Item 15) (Replaces:8578842) | |
|||
| 15 | 285777 | Strain Relief, Power Cord (Replaces:3952821) | |
|||
| 16 | WP8565957 | Cap, End (l.h.) (includes Item 19) (white) (Replaces:8566035) | |
|||
| W10205959 | Cap, End (l.h.) (includes Item 19) (red) | |
||||
| 17 | W10245838 | Shield, Suds (Replaces:W10188372) | |
|||
| 18 | WPW10175893 | Valve, Water Inlet | |
|||
| 19 | WP8312709 | Clip, Console | |
|||
| 20 | WPW10176591 | Flowmeter | |
|||
| 21 | W10185367 | Clamp, Hose | |
|||
| 22 | W11087528 | Hose, Flowmeter To Tub Ring (Replaces:W10166732) | |
|||
| 23 | W10117298 | Clamp, Hose | |
|||
| 24 | W10166731 | Hose, Valve To Flowmeter | |
|||
| 25 | WPW10339879 | Cable Tie (Replaces:3347868) | |
|||
| 26 | WP8519200 | Support, Rear Panel | |
|||
| 27 | W10205953 | Cap, End (r.h.) (includes Item 19) (red) | |
|||
| WP8565954 | Cap, End (r.h.) (includes Item 19) (white) (Replaces:8566032) | |
||||
| 28 | W10180780 | Switch, Rotary | |
|||
| 29 | WP8577378 | U-bend, Drain Hose | |
|||
| 30 | WP616099 | Clamp, Hose (Replaces:3363366) | |
|||
| 31 | WP285655 | Clamp, Hose (Replaces:8317496) | |
|||
| 32 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces:3951449) | |
|||
| 33 | 8541668 | Clamp, Hose | |
|||
| 34 | WPW10168262 | Switch, Rotary (Replaces:3949187) | |
|||
| 35 | WP3390631 | Screw, 10-16 X 3/8 (Replaces:62863) | |
|||
| 36 | WP3400818 | Screw, Timer Mounting | |
|||
| 37 | WP9740848 | Screw, 8-18 X 1/2 | |
|||
| 38 | WPW10179666 | Switch, Water Temperature (atc) | |
|||
| 39 | WPW10240470 | Panel, Console (Replaces:W10196933) | |
|||
| 40 | WP8566022 | Knob, Timer (Replaces:W10034730) | |
|||
| 41 | WP8566018 | Dial, Timer | |
|||
| 42 | WPW10034380 | Knob, Control | |
