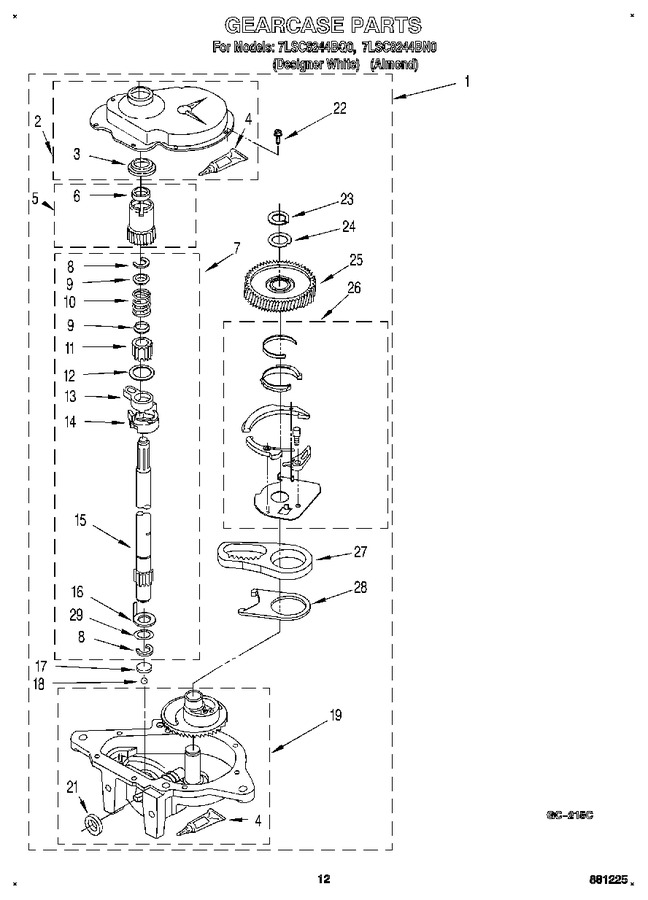

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 3360629 | Gearcase (complete) (Replaces:3360630) |  |
|||
| 2 | 285202 | Cover, Gearcase | |
|||
| 3 | WP3349985 | Seal, Gearcase Cover | |
|||
| 4 | WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) | |
|||
| 5 | 3360629 | Pinion, Spin (includes Item 25) (Replaces:63320) | |
|||
| 6 | WP356427 | Seal, Spin Pinion | |
|||
| 7 | WP389387 | Shaft, Agitstor (complete) | |
|||
| 8 | 90369 | Ring, Retaining (2) | |
|||
| 9 | 62677 | Retainer, Spring | |
|||
| 10 | 62676 | Spring, Agitator | |
|||
| 11 | WP389387 | Gear, Agitate (includes 15 And 29) (Replaces:63273) | |
|||
| 12 | 62619 | Washer, Agitator Gear | |
|||
| 13 | WP389387 | Cam Follower (includes 14) (Replaces:62580) | |
|||
| 14 | WP389387 | Cam, Agitate (includes 13) (Replaces:62581) | |
|||
| 15 | 285509 | Shaft, Agitator (includes 11 & 29) | |
|||
| 16 | 62618 | Washer, Cam Thrust | |
|||
| 17 | 285205 | Bearing, Thrust (Replaces:16018) | |
|||
| 18 | 285205 | Ball, Bearing (Replaces:85529) | |
|||
| 19 | 389230 | Bottom And Pinion, Gearcase | |
|||
| 21 | 285352 | Seal, Thrust Plug | |
|||
| 22 | WP3351614 | Screw, Gearcase Cover, Mounting (8) (10-24 X 3/8) | |
|||
| 23 | 3362552 | Ring, Retaining | |
|||
| 24 | 285735 | Washer Kit, Thrust | |
|||
| 25 | 3360629 | Gear, Spin (Replaces:62570) | |
|||
| 26 | 388253A | Neutral Assembly (Replaces:388253) | |
|||
| 27 | 3360629 | Rack, Connecting (Replaces:3349296) | |
|||
| 28 | 3360629 | Actuator, Shift (Replaces:62621) | |
|||
| 29 | WP388815 | Washer, Intermediate | |
