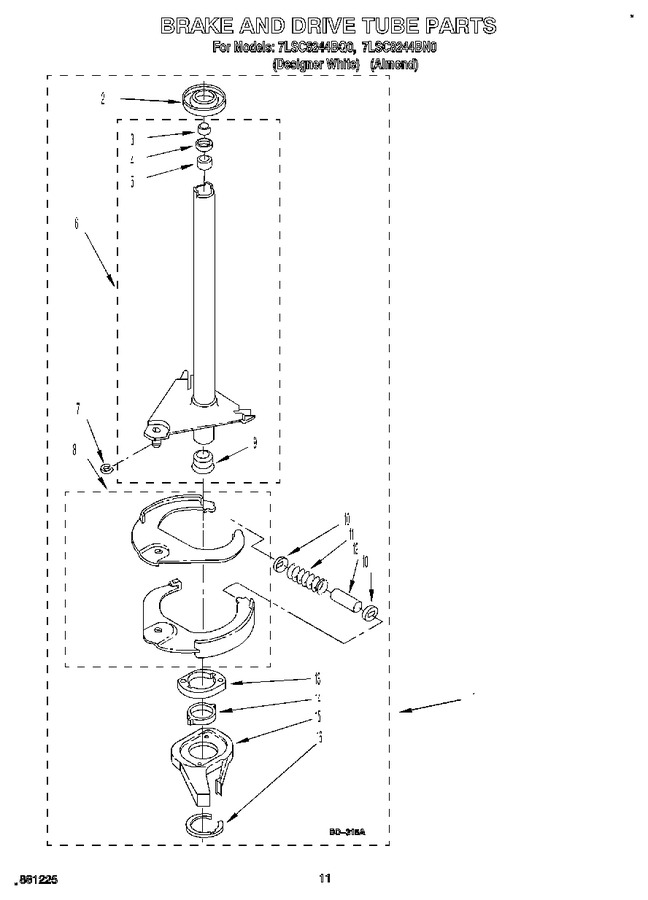

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10820043 | Brake And Drive Tube (complete) (Replaces:388952) | ![]() |
|||
2 | WP62658 | Ring, Thrust | ![]() |
|||
3 | WP91939 | Seal. Oil | ![]() |
|||
4 | WP356427 | Seal, Drive Tube | ![]() |
|||
5 | 356937 | Spacer, Drive Tube | ![]() |
|||
6 | WP64208 | Tube, Basket Drive (includes Illus. 3, 4, 5, & 9) (Replaces:64027) | ![]() |
|||
7 | W10083190 | Ring, Retaining (Replaces:64035) | ![]() |
|||
8 | 285438 | Shoe, Brake (Replaces:64232) | ![]() |
|||
9 | WP8546462 | ``t`` Bearing, Spin Tube (Replaces:62703) | ![]() |
|||
10 | 285658 | Cap, Brake Spring (2) (Replaces:62648) | ![]() |
|||
11 | 387806 | Spring, Brake | ![]() |
|||
12 | 285658 | Sleeve, Brake Spring (Replaces:62909) | ![]() |
|||
13 | WP8546461 | Cam, Brake Release (Replaces:63023) | ![]() |
|||
14 | WP63022 | Sleeve, Cam | ![]() |
|||
15 | 285790 | Driver, Brake Cam (Replaces:64194) | ![]() |
|||
16 | 285208 | Lubricant (use Only In Brake Shoe Assembly On Roller & Pin | ![]() |
|||
W11033823 | Ring, Retaining (Replaces:90368) | ![]() |
