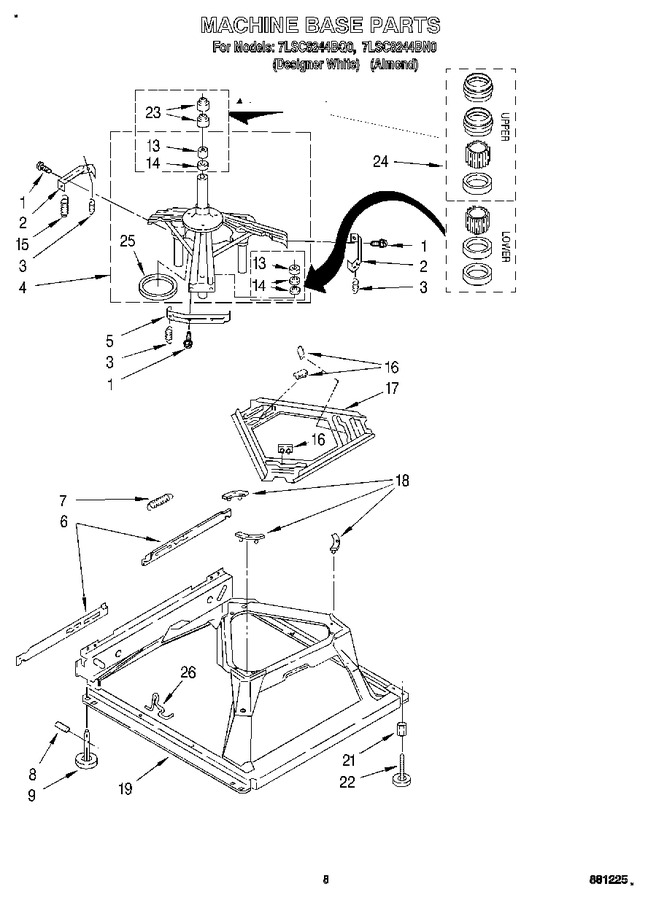

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, Bracket Mounting (10-16 X 5/8) (Replaces:343641) |  |
|||
| 2 | WP64067 | Bracket, Spring Outer (2) | |
|||
| 3 | WP63907 | Spring Suspension,(3) | |
|||
| 4 | 280184 | Support & Brake, Tub (Replaces:3362087) | |
|||
| 5 | WP64065 | Bracket, Spring Outer (l.f.) | |
|||
| 6 | WP63466 | Link, Leveling Mechanism (2) (Replaces:3348727) | |
|||
| 7 | 8316845 | Spring, Leveling Mechanism (Replaces:62597) | |
|||
| 8 | WP62837 | Pin, Knurled | |
|||
| 9 | 285244 | Foot, Rear (2) (Replaces:62596) | |
|||
| 13 | WP8546455 | Bearing, Centerpost (2) (Replaces:3347047) | |
|||
| 14 | W11095997 | Seal, Centerpost (3) (Replaces:357409) | |
|||
| 15 | WPW10250667 | Spring, Counterweight (Replaces:388492) | |
|||
| 16 | 285219 | Pad, Plate (Replaces:62568) | |
|||
| 17 | WP3946509 | Plate, Suspension (includes Illus. 16) | |
|||
| 18 | 285744 | Pad, Base (Replaces:3363660) | |
|||
| 19 | 285771 | Base Assembly (includes Illus, 6, 7, 8, 9, 18 & 26) (Replaces:3946512) | |
|||
| 21 | WP3359452 | Nut, Lock (3/8-16) | |
|||
| 22 | WPW10001130 | Foot, Front (2) (Replaces:389102) | |
|||
| 23 | WP8577376 | Seal, Centerpost (2) (Replaces:356934) | |
|||
| 24 | 285203 | Centerpost Bearing Kit (includes Illus. 13, 14 & 23) | |
|||
| 25 | WP63134 | Ring, Sound Deadening | |
|||
| 26 | WPW10145155 | Retainer, Suspension Spring (Replaces:63806) | |
