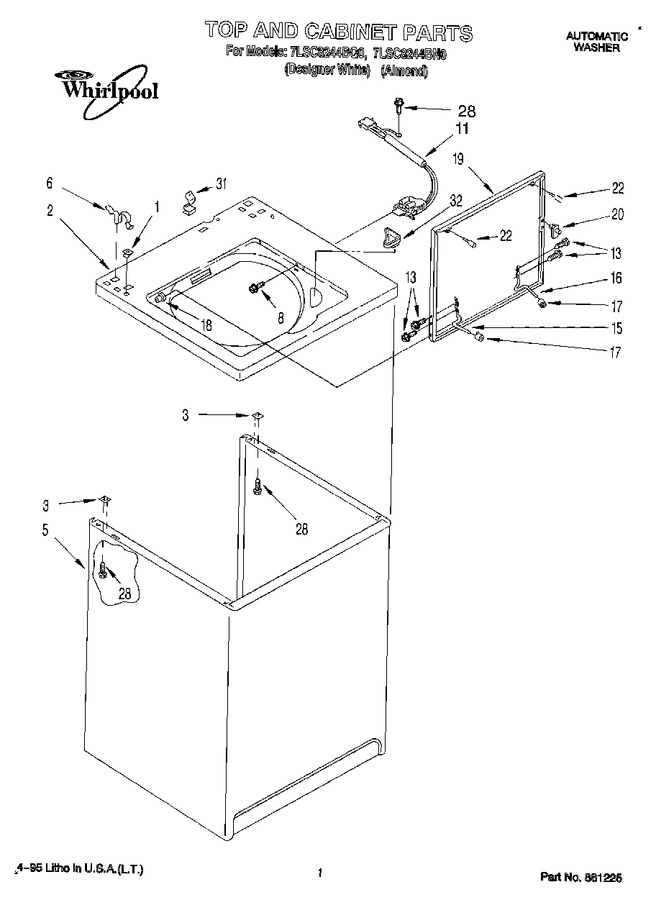

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WP357213 | Nut, Push-in (2) | ||||
2 | 3358201 | Top (for Almond Model) | ||||
3358200 | Top (for Designer White Model) | |||||
3 | WP62750 | Spacer, Cabinet To Top (4) | ||||
5 | 63424 | Cabinet (for Designer White Model) | ||||
63425 | Cabinet (for Almond Model) | |||||
6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) | ||||
8 | WP3356311 | Screw & Washer, Lid Switch (2) | ||||
11 | 285671 | Switch, Lid (Replaces:3352629) | ||||
13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces:3351355) | ||||
15 | WP54584 | Hinge, Lid (l.h.) | ||||
16 | WP54583 | Hinge, Lid (r.h.) | ||||
17 | WP19119 | Bumper, Lid Hinge | ||||
18 | WP21258 | Bearing, Lid Hinge (2) | ||||
19 | WPW10193874 | Lid (for Designer White Model) (Replaces:3361392) | ||||
W10193877 | Lid (for Almond Model) (Replaces:3361393) | |||||
20 | WP358684 | Strike, Lid Switch | ||||
22 | WP9724509 | Bumper, Lid (2) (Replaces:93770) | ||||
28 | WP681414 | Screw, 10-16 X 1/2 (5) (Replaces:384435) | ||||
31 | WP90016 | Clip, Harness | ||||
32 | WP3362952 | Dispenser, Bleach | ||||
LIT3366855 | Guide, Use And Care | |||||
350956 | Paint, Spray 13 Oz. (almond) | |||||
350572 | Oil, Gearcase (16 Oz.) | |||||
261891 | Golden Harvest (uncut) | |||||
978883 | Almond (uncut) | |||||
799344 | Paint, Bulk (1 Qt.) (white) (uncut) | |||||
261890 | Golden Harvest | |||||
350930 | Paint, Pressurized Spray (12 Oz.) White | |||||
WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) | |||||
350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) | |||||
72110 | Paint, Touch-up 1/2 Oz. (harvest Gold) | |||||
4313896 | Manual, (washer) (Replaces:LIT4313896) | |||||
WP72107 | Paint, Touch-up (1/2oz.) (almond) | |||||
LIT3361180 | Label, Wiring Diagram | |||||
72017 | Paint, Touch-up 1/2 Oz. (white) | |||||
285320 | Siphon Break Kit | |||||
367031 | Drain Protector | |||||
89121 | Stand-pipe Kit | |||||
3348675 | Shipping Kit | |||||
285208 | Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin) | |||||
LIT3360057 | Sheet, Installation Instructions |
