01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts

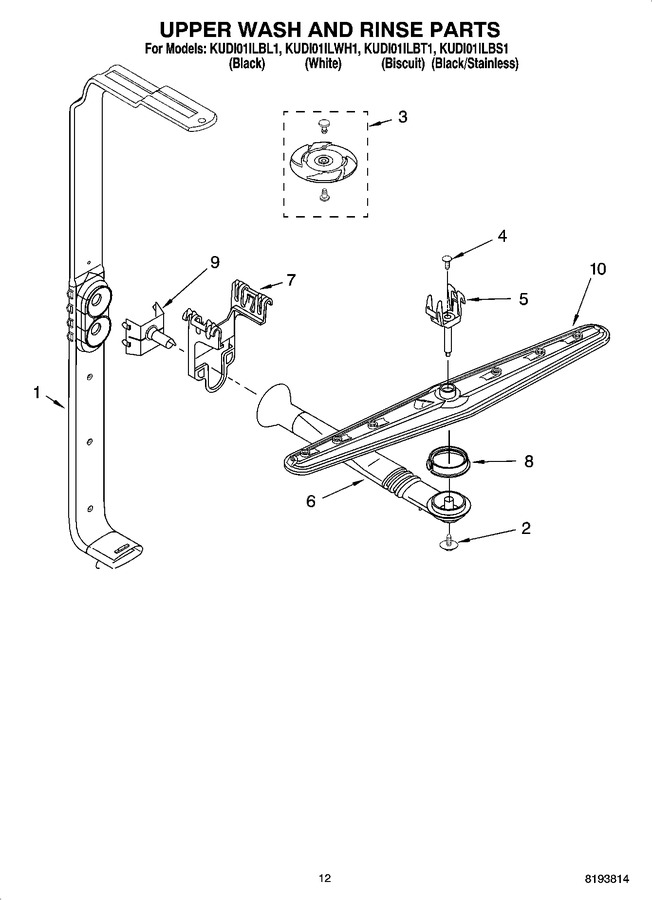

10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts


12 - Miscellaneous Parts Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Find a Video
1	WP8579224		Feed Tube Assembly (also Includes Item 3)   (Replaces:8539065)
2	WPW10349488		Screw   (Replaces:8533889)
3	8193768		Spinner, 3rd Level   (Replaces:8519736)
4	WP3400920		Fastener, Push-in
5	WP8268321		Mount   (Replaces:8268354)
6	WP8268355		Manifold
7	WP8268349		Hanger
8	WP8268433		Seal, Sprayarm
9	8269295		Nozzle, Feed
10	WP8535086		Sprayarm   (Replaces:8269023)
